Installation
12.50
"
4.50
"
48.00
"
Technical Data
Housing: 20ga. (0.032") pre-painted die formed
with sufficient knockouts for mounting and electri-
cal supply.
Finish: All cold rolled steel parts are painted with
a smooth, glossy, highly reflective white paint.
Reflector: Can be ordered with a 95% specular,
a 85% specular, or a 92% diffuse white enamel.
Substrate is 0.020" high quality aluminum. The
reflector profile is optimized using computer
analysis and manufactured using state of the art
CNC equipment. A protective premask is applied
to all reflective surfaces prior to manufacture.
Construction: The solid four-bend body provides
added rigidity. The endplates are securely attached
to the fixture body with screws. The reflectors are
attached to the socket bars with quarter-turn fasten-
ers. No tools are required for reflector installation
and removal. The lens attaches to the reflector with
a compression fit.
Features
Ideal for retail and office applications
Superior light quality and photometric efficiency
Modern appearance
Optional uplight notching available
Lensed center lamps and indirect outboard lamps
provide soft, even illumination
TR

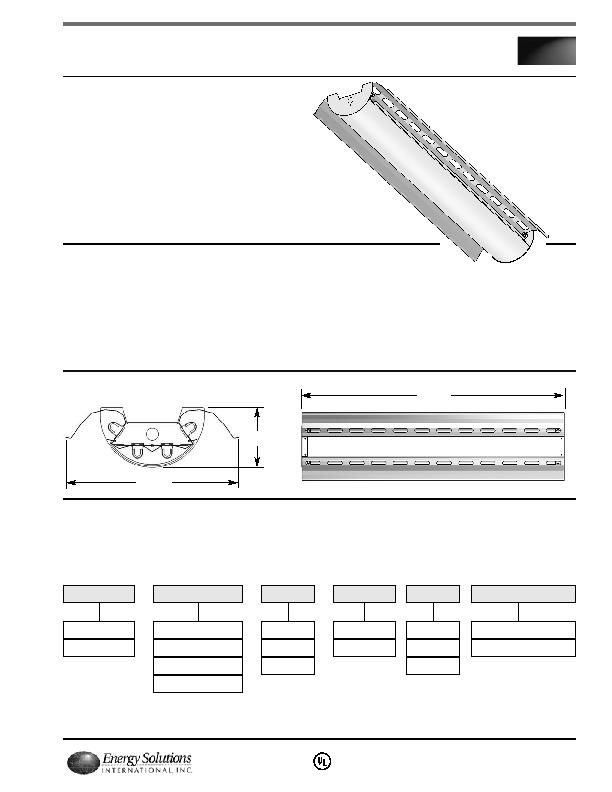

Decorative T5 High Bay
Meets or Exceeds
1598 Standard
Series
Energy Solutions International
Ordering Information
Size
14TR - 1' x 4'
Part Number = Fixture Size + Reflector Material + # Lamps + Lamp Wattage + Voltage + Ballast Type + Options
(Example 14TREA454UNV-PR = 1'x4' Decorative High Bay with an enhanced aluminum reflector, 4-54W lamps, UNV volt ballast and lens)
Reflector
EA - Enhanced Alum
WR - White Enamel
MM - MicroMatt
# Lamps
3
4
Lamp Watts
54
Voltage
UNV
480
Options
PR - Linear Prismatic Lens
R7
