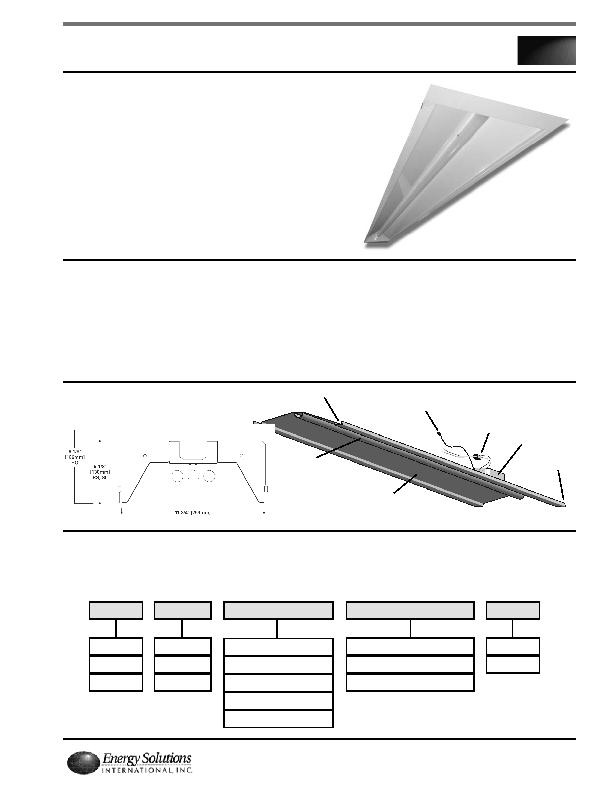

RX
LED Recessed Row System Retrofit Kit
Installation
Technical Data
Features
Available as a new construction fixture or a retrofit kit
High performance, architecturally styled luminaire
Utilizing the Sylvania PrevaLED
light system
Multiple Lumen packages available
Provides soft, even illumination
Fast and easy installation
Series
Energy Solutions International
Ordering Information
Style
F - Fixture
K - Kit
14RX - 1' x 4'
P4N - 4' PrevaLED 33 Watts
41 - LED 4100 Color Temperature
50 - LED 5000 Color Temperature
P4N - 8' PrevaLED 65 Watts
18RX - 1' x 8'
Part Number = Fixture Style + Fixture Size + Light Engine + Output
(Example F-18RX-P4H-41 = 1'x8' RX Series Fixture with a 78 Watt 41K PrevaLED Light Engine)
Options
D - Dimming
Size
Output
Light Engine
P4H - 4' PrevaLED 39 Watts
P4H - 8' PrevaLED 78 Watts
Construction: Very robust all aluminum chassis
and components allows for maximum dissipation
of heat and long life of electrical components.
Light Engine: High quality Osram LED modules
provide optimal thermal transfer and system
reliability. In conjunction with Osram program-
mable drivers the system meets a wide range of
wattage and lumen demands at superior efficacy
levels.
Consult Factory for additional Accessories
Reflector: The reflector is provided with a 92%
reflective white enamel. The substrate is 0.040"
high quality aluminum. The reflector profile is
optimized using computer analysis and manufac-
tured using state of the art CNC equipment.
Bonding Tether
Hinge Tab
Hinge Tab
Aluminum
Reflector
LED
LightStrip/Lens
Electrical Disconnect
Driver
®
Retrofit Instructions: First disconnect electrical
power inside fixture and remove fluorescent ballast.
Then insert hinge rails between the ceiling grid and
fixture housing at each end. The hinge tabs on the
retrofit insert are engaged with the slots in the hinge
rails. With the insert hanging open the electrical
connection can be made and ground strap installed.
The final step is to close the new LED door and
secure the latches.
