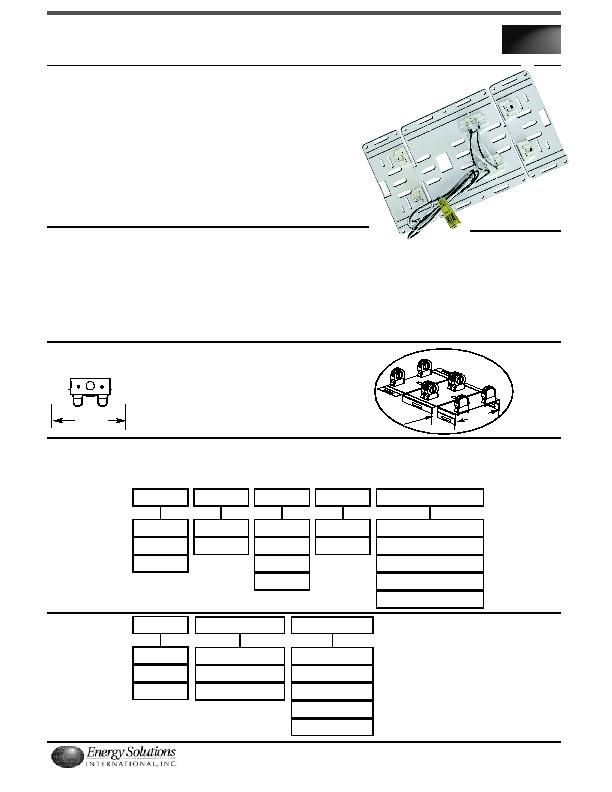

LED Strip Fixture Retrofit Kit
Installation
Technical Data
Socket Bars: 0.032" pre-painted cold-rolled
steel. Provided as a three-piece break-apart
set to simplify material handling. Prepunched
for lampholders and alignment holes.
Reflector: The reflector can be ordered with
a 95% reflective specular finish or a 92%
reflective white enamel coating. The reflector
substrate is 0.020" high quality aluminum.
The reflector profile is optimized using com-
puter analysis and manufactured using state
of the art CNC equipment. A protective pre-
mask is applied to all reflective surfaces prior
to manufacture.
Kit Contents: The LK Series Kit is pre-wired with
all the materials necessary to retrofit one fixture. This
includes an energy efficient electronic ballast, twist-lock
lampholders, a 2008 code required electrical disconnect,
and all required hardware for installation. Providing that
the existing ballast covers are four feet long, they can be
reused with the kit or optional reflectors can be added
when purchasing the LK Series Kit.
Installation: For retrofit, the existing ballast covers, ballast and
socket bars are removed. With the new ballast installed, the ESI
socket bars are attached to the existing channel with self-tapping
screws. The ESI socket bars are folded around the channel as
shown in the diagram to the right. If reusing the existing ballast
covers, self-tapping screws may be required for attachment to the
new socket bars. The optional reflectors are attached with provided
quarter-turn fasteners.
Features
Retrofits 2-Lamp & 4-Lamp fluorescent fixtures to LED
Complete pre wired kit for any LED T8 tube
Up to 40% wattage reduction over standard T8
Series
Energy Solutions International
4.250"
4.25"
5.000"
Optional Ballast Cover
LK
Ordering Information
Size
K-14 - 1'x4'
K-18 - 1'x8'
Size
K-12 - 1'x2'
K-14 - 1'x4'
Lamp Type
0 - LED T8
Style
VKTW-LED-PW
Reflector Material
WR - White Reflective
EA - Enhanced Aluminum
Design
BC4.25 - Ballast Cover
BC5.00 - Ballast Cover
6S - Small Profile
8S - Standard Profile
Wiring Options
Blank - Single End Power
2 - Double End Power
3 - Prewired For External Driver
4 - No Wires
# of Lamps
1
2
4
Part Number = Style + Size + Light Engine + Output + Lens + Options
(Example K-1404-VKTW-LED-PW = 1'X4' LED with single end power)
(Optional Reflector) Part Number = Size + Material + Design
L20
