Energy Solutions International
Meets or Exceeds 1598 Standard

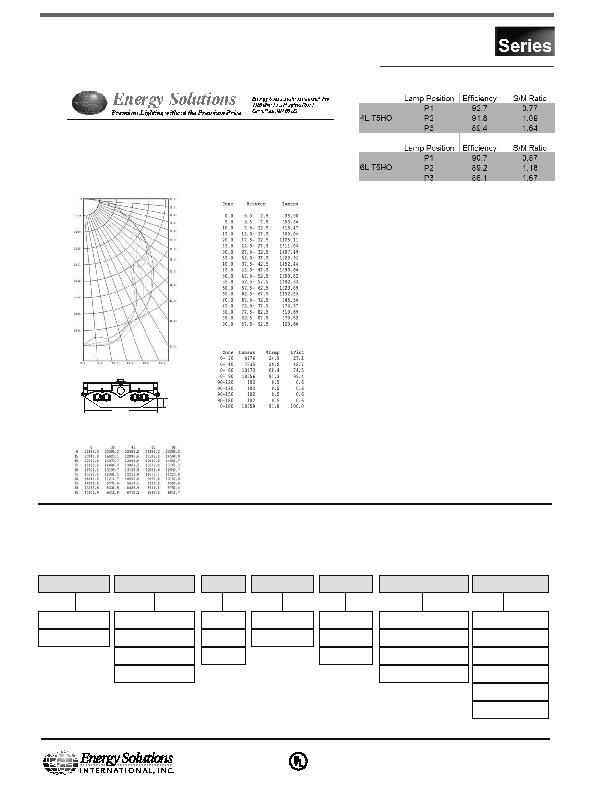

Photometrics (shown with standard distribution P2)
Photometric Summary Chart
.ENERGY SOLUTIONS 1 X 4 FLUORESCENT LUMINAIRE
WITH SPECULAR REFLECTOR AND NO LENS
FOUR T5 LINEAR FLUORESCENT 54 WATT LAMPS, LUMEN RATING 5000 LMS.
ONE SYLVANIA QTP4X54T5/HO BALLAST OPERATING AT 277 VAC AND 234 WATTS
8.87
1.18
CANDLEPOWER SUMMARY
ZONAL LUMENS AND PERCENTAGES
** EFFICIENCY = 91.8% **
PAINT REFLECTANCE = 0.78 S/MH = 1.09
SC (ALONG) = 1.26 SC (ACROSS) = 1.09
PREPARED IN PHOTOPIA FOR
ENERGY SOLUTIONS
ST. PAUL, MN
LUMINANCE SUMMARY - CD./SQ.M.
Ordering Information
Size
F-14MX - 1' x 4'
Part Number = Fixture Size + Reflector Material + # Lamps + Lamp Wattage + Voltage + Ballast Type + Options
(Example F-14MXEA454UNV-P1 = 1'x4' MX Series with an enhanced alum. refl, 4-54W lamps, a universal voltage ballast and task beam)
* Fixtures supplied with Normal Beam unless specified otherwise;
fixtures can be field modified for various beam spreads
Reflector
EA - Enhanced Alum
AA - Anodized Alum
WR - White Enamel
# Lamps
4
6
Lamp Watts
54
Voltage
UNV
480
Ballast Type
N - Normal
H - High Ballast Factor
L - Low Ballast Factor
Options
SEN - Sensor
UL - Uplight
P1* - Task Beam
P2* - Normal Beam
P3* - Wide Beam
