KS
Strip Fixture Retrofit Kit
Installation
Technical Data
Socket Bars: 0.032" pre-painted cold-rolled
steel. Provided as a three-piece break-apart set
to simplify material handling. Prepunched for lam-
pholders and alignment holes.
Reflector: The reflector can be ordered with an
85% reflective anodized finish, a 95% reflective
enhanced or film finish, or a 92% reflective white
enamel. The substrate is 0.020" high quality alu-
minum. The reflector profile is optimized using
computer analysis and manufactured using state
of the art CNC equipment. A protective premask
is applied to all reflective surfaces prior to manu-
facture.
Installation: For retrofit, the existing ballast covers,
ballast and socket bars are removed. With the new
ballast installed, the ESI socket bars are attached to
the existing channel with self-tapping screws. The
reflector is positioned between the socket bars and
attached with quarter-turn fasteners.
Highlights
Features
Computer designed for optimal performance
Available in a range of materials to meet every
performance and budget criteria
One piece center bracket simplifies installation
Designed and analyzed on proprietary soft-
ware for optimal performance
Quarter-turn fasteners allow tool-free reflector
installation and removal
One piece center bracket
simplifies and speeds up
installation
Optional Versa-form socket-bar
set is field adjustable for 4.25"
or 5.00" channels
Available in reflectances ranging from 85% to
95% to meet every performance and budget
requirement.
Series
Energy Solutions International

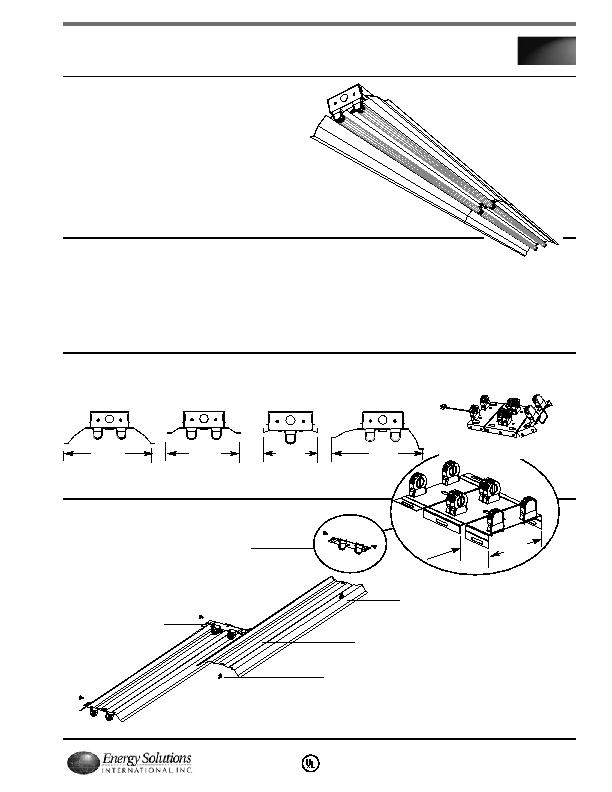

12" Refl. Profile (12S)*
*Dimensions subject to change. Available in a 1Lamp, 2Lamp, and 3Lamp Cross-section
10.000"
7.625"
6" Refl. Profile (6S)*
5.125"
12" Asymmetric (12A)*
9.500"
Break-apart Socket-Bar Set (Fixed Channel)
**NEW** Versa-Form Socket-Bar Set
(4.25" or 5.00 Variable)
4.25"
5.000"
8" Refl. Profile(8S)*
Meets or Exceeds
1598 Standard
UL classified for use with existing UL listed luminaire
K8
