P1 Aisle
P2 High Bay
P3 Low Bay
VH

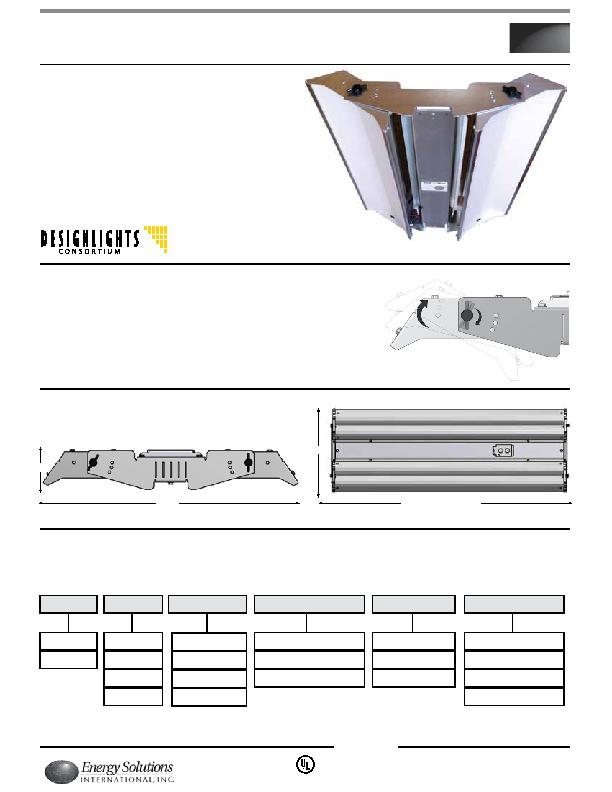

Variable Distribution Industrial Fixture
Installation
Technical Data
Features
Standard light engines of 10,000, 15,000 and 18,000
lumens, custom sizes available
Adjustable aim allows for various distribution patterns
Available in 2, 3 and 4 foot configurations
Diffusing lens options available to minimize pixelation and glare
Optional motion control
Meets or Exceeds
1598 Standard
*LED Pending
Series
Energy Solutions International
Ordering Information
Style
F-New Fixture
Part Number = Fixture Size + Reflector Material + # Lamps + Lamp Wattage + Options
(Example F-24VH-L4H-41-CM = 2'x4' Variable Distribution Fixture with a 215W 41K LED Light Engine and a Optical Liner)
Size
22VH - 2' x 2'
23VH - 2' x 3'
24VH - 2' x 4'
Output
41 - LED 41K Color Temp
50 - LED 50K Color Temp
Lens
Blank - Clear Lens
DL - Diffusing Lens
Options
OBS - On Board Sensor
D - Dimming
Y - Y Toggle Hangers
Light Engine
L2H - 2' LED 120W
L3H - 3' LED 175W
L4H - 4' LED 215W
2.75"
17.00"
24.00", 36.00", 48.00"
Mounting: Fixture is designed for chain
or aircraft cable hanging. Consult factory
for mounting accessories.
Construction: Very robust all
aluminum chassis and components
allows for maximum dissipation of heat
and long life of electrical components.
17.00"
Light Engine: High quality Nichia
emitters are secured to patented
flexible substrate, providing optimal
thermal transfer and system reliability.
Optical: Proprietary 95% Enhanced
Aluminum reflector design fully
optimized using computer analysis and
manufactured using state of the art
CNC equipment.
Consult Factory for additional Accessories
Aisle Setting:
Spacing Criteria - 0.74 (Narrow)
Highbay Setting: Spacing Criteria - 1.18 (Medium)
Lowbay Setting Spacing Criteria - 1.64 (Wide)
®
Listed
L25
