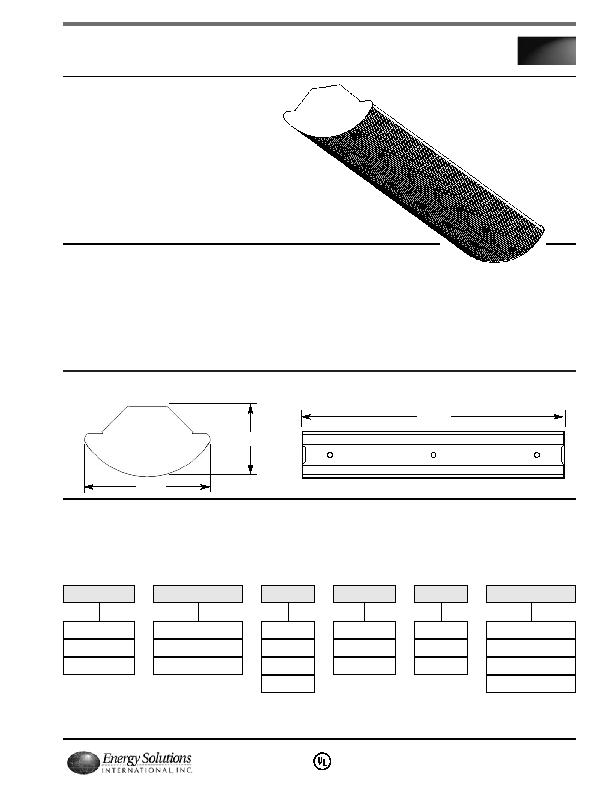

Installation
6.00
"
3.50
"
48.00
"
Technical Data
Housing: 20ga. (0.032") pre-painted die formed
with sufficient knockouts for mounting and electri-
cal supply.
Finish: All cold rolled steel parts are painted with
a smooth, glossy, highly reflective white paint.
Reflector: Can be ordered with a 95% specular,
a 85% specular, or a 92% diffuse white enamel.
Substrate is 0.020" high quality aluminum. The
reflector profile is optimized using computer
analysis and manufactured using state of the art
CNC equipment. A protective premask is applied
to all reflective surfaces prior to manufacture.
Construction: The solid four-bend body provides
added rigidity. The endplates are securely attached
to the fixture body with rivets. The reflectors are
attached to the socket bars with quarter-turn fasten-
ers. No tools are required for reflector installation
and removal. The lens attaches to the reflector with
a compression fit.
Features
Ideal for school, hospital, and office space
Superior Light Quality, and Photometric
Efficiency
Rigid, Four-Bend Press-Brake Formed Body
Modern Appearance
CW
Small Profile Wrap Fixture
Meets or Exceeds
1598 Standard
Series
Energy Solutions International
Ordering Information
Size
14CW - 1' x 4'
18CW - 1' x 8'
Part Number = Fixture Size + Reflector Material + # Lamps + Lamp Wattage + Voltage + Ballast Type + Options
(Example 14CWWR132UNVN = 1'x4' Small Profile Wrap with a white aluminum reflector, 1-32W lamps, UNV volt standard power ballast)
Reflector
EA - Enhanced Alum
WR - White Enamel
# Lamps
1
2
4
Lamp Watts
32
54
Voltage
UNV
480
Ballast
N - Normal
H - High Ballast Factor
L - Low Ballast Factor
C4
