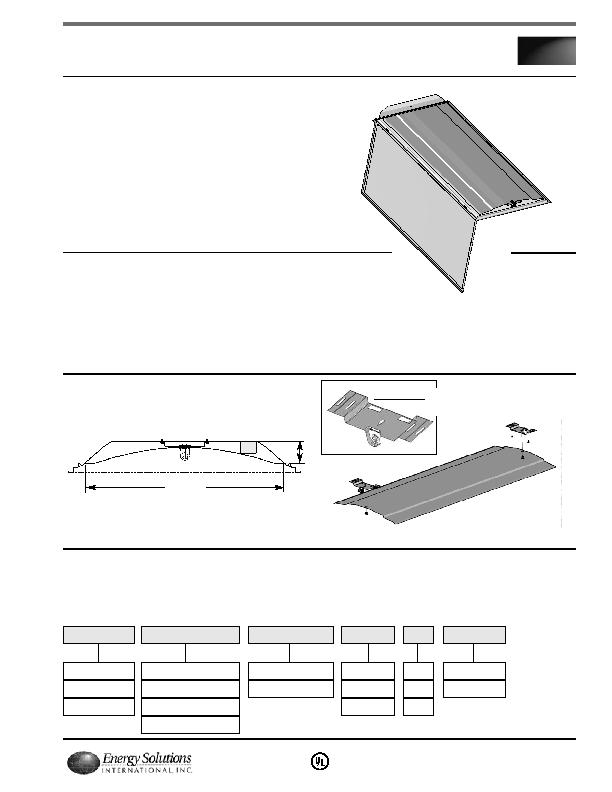

KT
1L Parabolic/Prismatic Troffer Retrofit Kit
Meets or Exceeds
1598 Standard
Series
Energy Solutions International
Installation
20.000
"
2.250
"
Technical Data
Socket Bars: 0.032" pre-painted cold-
rolled steel. Prepunched for lampholders
and mounting hardware.
Reflector: Can be ordered with a 95% specular,
95% Micro-matt or a 92% diffuse white enamel.
Substrate is 0.020" high quality aluminum. The
reflector profile is optimized using computer analy-
sis and manufactured using state of the art CNC
equipment. A protective premask is applied to all
reflective surfaces prior to manufacture.
Installation: For retrofit, the existing ballast and socket
bars are removed. With the new ballast installed and offset
to the side, the ESI socket bars are centered at the ends of
the fixture and fastened with two self-tapping screws. The
reflector is positioned between the socket bars and secured
with quarter-turn fasteners.
Features
Computer designed for optimal performance
Universal kit can be used in 1L and 2L configurations
Minimizes lens streaking
Tool-free reflector installation and removal
Fits many prismatic and parabolic troffers - consult
factory to determine if kit will work in your fixture
Ordering Information
Size
K-22 - 2' x 2'
K-24 - 2' x 4'
Part Number = Fixture Size + Reflector Material + # Lamps + Lamp Wattage + Options
(Example K-24MMV1132-VER = 2'x4' Univeral Troffer Kit with a Micro-matt Reflector, 1-32W, and versa style socket-bar)
Reflector
EA - 95% Enhanced Alum
Design
V1 - Universal Troffer
# Lamps
1
2
Watts
17
32
Socket-bar
VER- Versa
MM - 92% Micro-matt
WR - 92% White Enamel
*Note offset placement of ballast
Universal Socket-bar is field
adjustable and can be used with
1lamp or 2lamp
K7
