Prepunched for lampholders and alignment
holes.
a 95% reflective specular finish or a 92%
reflective white enamel coating. The reflector
substrate is 0.020" high quality aluminum.
The reflector profile is optimized using com-
puter analysis and manufactured using state
of the art CNC equipment. A protective pre-
mask is applied to all reflective surfaces prior
to manufacture.

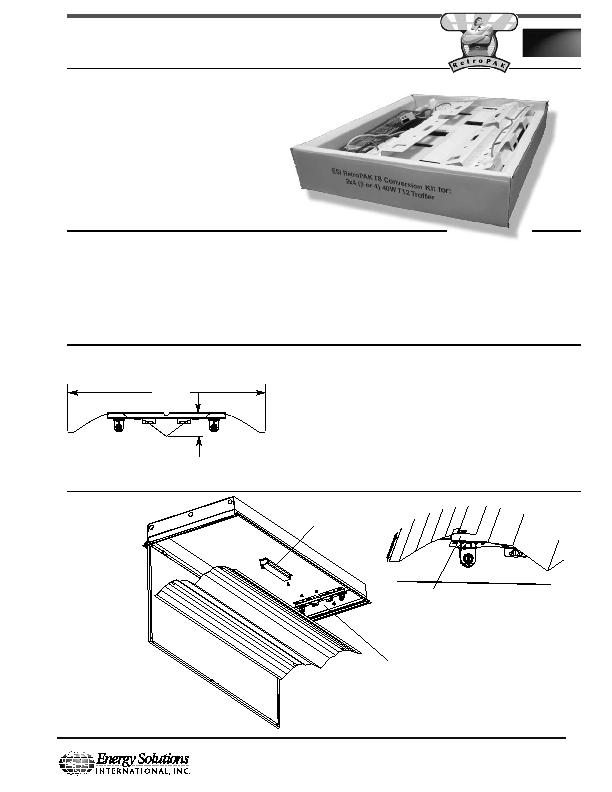

all the materials necessary to retrofit one fixture. This
includes an energy efficient electronic ballast, twist-lock
lampholders, a 2008 code required electrical disconnect,
and all required hardware for installation.
T8XP QHEH
of the endplate and attach with
self-tapping screws
self-tapping screws.
or maintaining this product. Improper installation or maintenance may
result in injury or death or significant property damage.
1. Disconnect power to the fixture
2. Remove the existing lamps, ballast cover, socket-bars and ballast.
3. Securely install new ballast using self-tapping screws.
4. Install socket-bars at the fixture ends using self-tapping screws.
5. Reconnect all grounding
6. Attach power to the provided luminaire disconnect.
7. Install reflector by aligning slots in reflector with tabs on socket-bars.
8. Install lamps and reconnect power to the fixture.
reflector with tabs on socket-bar
