e
EC

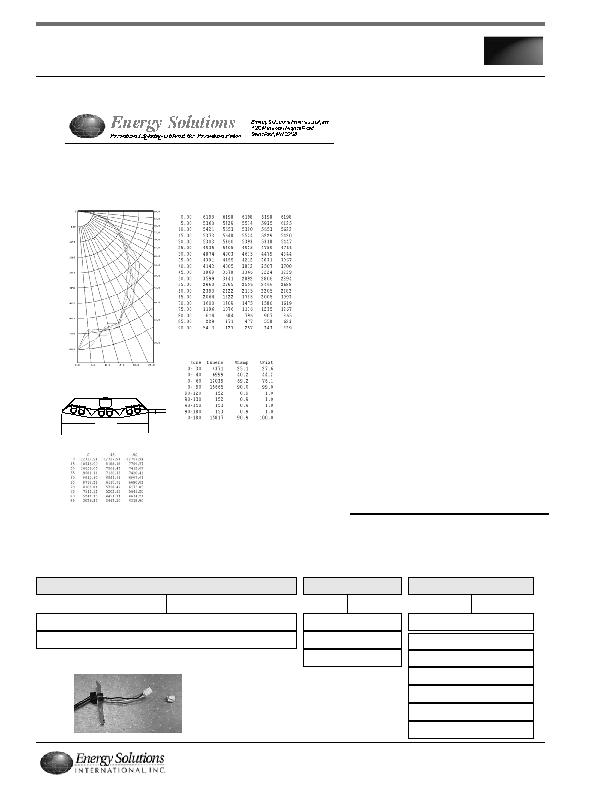

Economy High Bay Industrial Luminaire
Photometrics
Ordering Information
Base Fixture
E-14ECEA632UNV - 1' x 4' EC, Enhanced Refl, 6-32W T8, UNV Voltage
Part Number = Fixture Size + Reflector Material + # Lamps + Lamp Wattage + Voltage + Ballast Type + Options
(Example E-14ECEA632UNVH-8C4 = 1'x4' Economy Eco-Brite with an enhanced reflector, 6-32W lamps, HP ballasts and an 8' L7 cord)
Options
N - Normal Power Ballast
H - High Power Ballast
Cord*
8R1 - 8' 120V 15A Three Prong
8R2 - 8' 120V 15A Twist-lock
8R3 - 8' 240V 15A Twist-lock
8R4 - 8' 277V 15A Twist-lock
8R8 - 8' Whip - no plug
8R9 - 8' Metal Cable - no plug
(888) 308-9197
Series
Energy Solutions International
.ENERGY SOLUTIONS 1 X 4 FLUORESCENT LUMINAIRE
WITH WHITE INTERIOR, SPECULAR REFLECTOR AND NO LENS
SIXT8 LINEAR FLUORESCENT 32 WATT LAMPS, LUMEN RATING 2900 LMS. TWO SYLVANIA QT332PLUS
BALLASTS OPERATING AT 277 VAC AND 226 WATTS
16.00
1.37
CANDLEPOWER SUMMARY
ZONAL LUMENS AND PERCENTAGES
** EFFICIENCY = 90.9% **
PAINT REFLECTANCE = 0.78 S/MH = 1.17
SC (ALONG) = 1.17 SC (ACROSS) = 1.06
PREPARED IN PHOTOPIA FOR
ENERGY SOLUTIONS
ST. PAUL, MN
LUMINANCE SUMMARY - CD./SQ.M.
* This option includes a
plug disconnect within
the fixture. This allows
simple, tool free replace-
ment of the fixture if nec-
essary.
Cord Option
