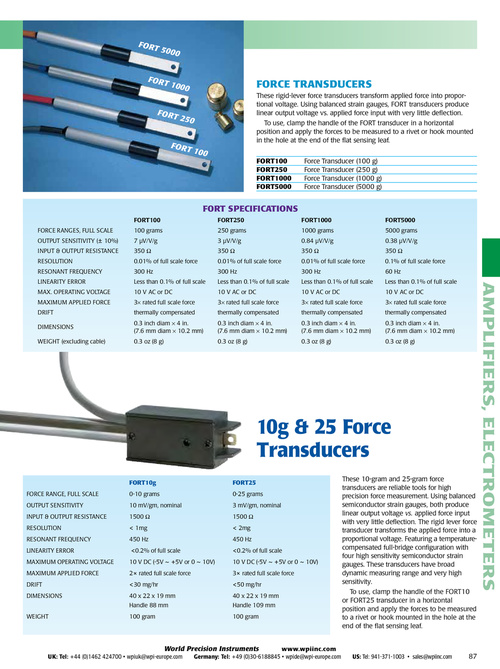

FORT 5000 FORT 1000 ForCE tranSDUCErS These rigid-lever force transducers transform applied force into proportional voltage. using balanced strain gauges, FOrT transducers produce linear output voltage vs. applied force input with very little deflection. To use, clamp the handle of the FOrT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf. Fort100 Fort250 Fort1000 Fort5000 Force Transducer (100 g) Force Transducer (250 g) Force Transducer (1000 g) Force Transducer (5000 g) FORT 250 FORT 100 Fort SpECiFiCationS FORT100 FOrCe rANGeS, FuLL SCALe OuTpuT SeNSITIVITy (± 10%) INpuT & OuTpuT reSISTANCe reSOLuTION reSONANT FrequeNCy LINeArITy errOr mAX. OperATING VOLTAGe mAXImum AppLIeD FOrCe DrIFT DImeNSIONS WeIGHT (excluding cable) 100 grams 7 µV/V/g 350 Ω 0.01% of full scale force 300 Hz Less than 0.1% of full scale 10 V AC or DC 3× rated full scale force thermally compensated 0.3 inch diam × 4 in. (7.6 mm diam × 10.2 mm) 0.3 oz (8 g) FORT250 250 grams 3 µV/V/g 350 Ω 0.01% of full scale force 300 Hz Less than 0.1% of full scale 10 V AC or DC 3× rated full scale force thermally compensated 0.3 inch diam × 4 in. (7.6 mm diam × 10.2 mm) 0.3 oz (8 g) FORT1000 1000 grams 0.84 µV/V/g 350 Ω 0.01% of full scale force 300 Hz Less than 0.1% of full scale 10 V AC or DC 3× rated full scale force thermally compensated 0.3 inch diam × 4 in. (7.6 mm diam × 10.2 mm) 0.3 oz (8 g) FORT5000 5000 grams 0.38 µV/V/g 350 Ω 0.1% of full scale force 60 Hz Less than 0.1% of full scale 10 V AC or DC 3× rated full scale force thermally compensated 0.3 inch diam × 4 in. (7.6 mm diam × 10.2 mm) 0.3 oz (8 g) AMPLIFIERS, ELECTROMETERS 10g & 25 Force transducers Fort10g FOrCe rANGe, FuLL SCALe OuTpuT SeNSITIVITy INpuT & OuTpuT reSISTANCe reSOLuTION reSONANT FrequeNCy LINeArITy errOr mAXImum OperATING VOLTAGe mAXImum AppLIeD FOrCe DrIFT DImeNSIONS WeIGHT 0-10 grams 10 mV/gm, nominal 1500 Ω < 1mg 450 Hz <0.2% of full scale 10 V DC (-5V ~ +5V or 0 ~ 10V) 2× rated full scale force <30 mg/hr 40 x 22 x 19 mm Handle 88 mm 100 gram Fort25 0-25 grams 3 mV/gm, nominal 1500 Ω < 2mg 450 Hz <0.2% of full scale 10 V DC (-5V ~ +5V or 0 ~ 10V) 3× rated full scale force <50 mg/hr 40 x 22 x 19 mm Handle 109 mm 100 gram These 10-gram and 25-gram force transducers are reliable tools for high precision force measurement. using balanced semiconductor strain gauges, both produce linear output voltage vs. applied force input with very little deflection. The rigid lever force transducer transforms the applied force into a proportional voltage. Featuring a temperaturecompensated full-bridge configuration with four high sensitivity semiconductor strain gauges. These transducers have broad dynamic measuring range and very high sensitivity. To use, clamp the handle of the FOrT10 or FOrT25 transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf. World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 87
