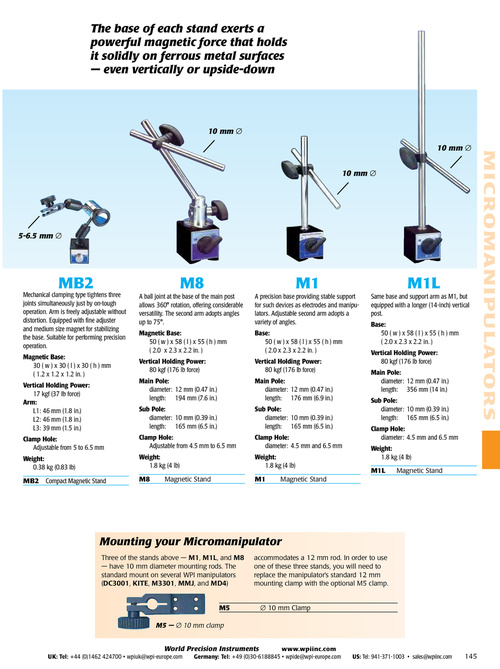

The base of each stand exerts a powerful magnetic force that holds it solidly on ferrous metal surfaces — even vertically or upside-down 10 mm ∅ 10 mm ∅ 10 mm ∅ M ICROMAN I PU LATORS 5-6.5 mm ∅ Mechanical clamping type tightens three joints simultaneously just by on-tough operation. Arm is freely adjustable without distortion. Equipped with fine adjuster and medium size magnet for stabilizing the base. Suitable for performing precision operation. Magnetic Base: 30 ( w ) x 30 ( l ) x 30 ( h ) mm ( 1.2 x 1.2 x 1.2 in. ) Vertical Holding Power: 17 kgf (37 Ib force) Arm: L1: 46 mm (1.8 in.) L2: 46 mm (1.8 in.) L3: 39 mm (1.5 in.) Clamp Hole: Adjustable from 5 to 6.5 mm Weight: 0.38 kg (0.83 Ib) MB2 Compact Magnetic Stand MB2 M8 A ball joint at the base of the main post allows 360° rotation, offering considerable versatility. The second arm adopts angles up to 75°. Magnetic Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf (176 lb force) Main Pole: diameter: 12 mm (0.47 in.) length: 194 mm (7.6 in.) Sub Pole: diameter: 10 mm (0.39 in.) length: 165 mm (6.5 in.) Clamp Hole: Adjustable from 4.5 mm to 6.5 mm Weight: 1.8 kg (4 lb) M8 Magnetic stand M1 A precision base providing stable support for such devices as electrodes and manipulators. Adjustable second arm adopts a variety of angles. Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf (176 lb force) Main Pole: diameter: 12 mm (0.47 in.) length: 176 mm (6.9 in.) Sub Pole: diameter: 10 mm (0.39 in.) length: 165 mm (6.5 in.) Clamp Hole: diameter: 4.5 mm and 6.5 mm Weight: 1.8 kg (4 lb) M1 Magnetic stand M1l Same base and support arm as M1, but equipped with a longer (14-inch) vertical post. Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf (176 lb force) Main Pole: diameter: 12 mm (0.47 in.) length: 356 mm (14 in.) Sub Pole: diameter: 10 mm (0.39 in.) length: 165 mm (6.5 in.) Clamp Hole: diameter: 4.5 mm and 6.5 mm Weight: 1.8 kg (4 lb) M1l Magnetic stand Mounting your Micromanipulator Three of the stands above — M1, M1L, and M8 — have 10 mm diameter mounting rods. The standard mount on several WPI manipulators (DC3001, KITE, M3301, MMJ, and MD4) M5 M5 — ∅ 10 mm clamp World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com accommodates a 12 mm rod. In order to use one of these three stands, you will need to replace the manipulator's standard 12 mm mounting clamp with the optional M5 clamp. ∅ 10 mm Clamp US: Tel: 941-371-1003 • sales@wpiinc.com 145
