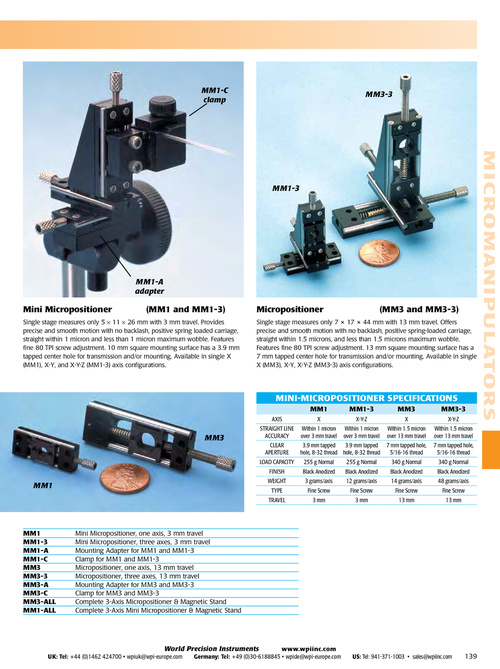

MM1-C clamp MM3-3 M ICROMAN I PU LATORS MM1-3 MM1-A adapter Mini Micropositioner (MM1 and MM1-3) Micropositioner (MM3 and MM3-3) single stage measures only 5 × 11 × 26 mm with 3 mm travel. Provides precise and smooth motion with no backlash, positive spring loaded carriage, straight within 1 micron and less than 1 micron maximum wobble. features fine 80 TPI screw adjustment. 10 mm square mounting surface has a 3.9 mm tapped center hole for transmission and/or mounting. Available in single x (MM1), x-Y, and x-Y-z (MM1-3) axis configurations. single stage measures only 7 × 17 × 44 mm with 13 mm travel. Offers precise and smooth motion with no backlash, positive spring-loaded carriage, straight within 1.5 microns, and less than 1.5 microns maximum wobble. features fine 80 TPI screw adjustment. 13 mm square mounting surface has a 7 mm tapped center hole for transmission and/or mounting. Available in single x (MM3), x-Y, x-Y-z (MM3-3) axis configurations. MiNi-MicroPoSitioNer SPecificatioNS MM1 AXIS X Within 1 micron over 3 mm travel STRAIGHT LINE ACCURACY CLEAR APERTURE LOAD CAPACITY FINISH WEIGHT TYPE TRAVEL MM1-3 X-Y-Z Within 1 micron over 3 mm travel MM3 X Within 1.5 micron over 13 mm travel 7 mm tapped hole, 5/16-16 thread 340 g Normal Black Anodized 14 grams/axis Fine Screw 13 mm MM3-3 X-Y-Z Within 1.5 micron over 13 mm travel 7 mm tapped hole, 5/16-16 thread 340 g Normal Black Anodized 48 grams/axis Fine Screw 13 mm MM3 3.9 mm tapped 3.9 mm tapped hole, 8-32 thread hole, 8-32 thread 255 g Normal Black Anodized 3 grams/axis Fine Screw 3 mm 255 g Normal Black Anodized 12 grams/axis Fine Screw 3 mm MM1 MM1 MM1-3 MM1-a MM1-c MM3 MM3-3 MM3-a MM3-c MM3-all MM1-all Mini Micropositioner, one axis, 3 mm travel Mini Micropositioner, three axes, 3 mm travel Mounting Adapter for MM1 and MM1-3 Clamp for MM1 and MM1-3 Micropositioner, one axis, 13 mm travel Micropositioner, three axes, 13 mm travel Mounting Adapter for MM3 and MM3-3 Clamp for MM3 and MM3-3 Complete 3-Axis Micropositioner & Magnetic stand Complete 3-Axis Mini Micropositioner & Magnetic stand World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 139
