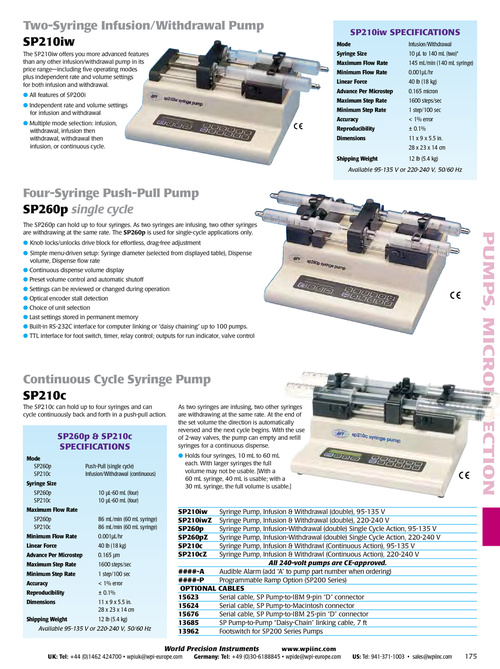

Two-Syringe Infusion/Withdrawal Pump SP210iw The SP210iw offers you more advanced features than any other infusion/withdrawal pump in its price range—including five operating modes plus independent rate and volume settings for both infusion and withdrawal. l All features of SP200i l Independent rate and volume settings for infusion and withdrawal l Multiple mode selection: infusion, withdrawal, infusion then withdrawal, withdrawal then infusion, or continuous cycle. SP210iw SPECIFICATIONS Mode Syringe Size Maximum Flow Rate Minimum Flow Rate Linear Force Advance Per Microstep Maximum Step Rate Minimum Step Rate Accuracy Reproducibility Dimensions Shipping Weight infusion/withdrawal 10 µl to 140 ml (two)* 145 ml/min (140 ml syringe) 0.001µl/hr 40 ib (18 kg) 0.165 micron 1600 steps/sec 1 step/100 sec < 1% error ± 0.1% 11 x 9 x 5.5 in. 28 x 23 x 14 cm 12 ib (5.4 kg) Available 95-135 V or 220-240 V, 50/60 Hz Four-Syringe Push-Pull Pump SP260p single cycle The SP260p can hold up to four syringes. As two syringes are infusing, two other syringes are withdrawing at the same rate. The SP260p is used for single-cycle applications only. l Knob locks/unlocks drive block for effortless, drag-free adjustment l Simple menu-driven setup: Syringe diameter (selected from displayed table), Dispense volume, Dispense flow rate l Continuous dispense volume display l Preset volume control and automatic shutoff l Settings can be reviewed or changed during operation l Optical encoder stall detection l Choice of unit selection l Last settings stored in permanent memory l Built-in RS-232C interface for computer linking or “daisy chaining” up to 100 pumps. l TTL interface for foot switch, timer, relay control; outputs for run indicator, valve control PUMPS, MICROINJECTION Continuous Cycle Syringe Pump SP210c The SP210c can hold up to four syringes and can cycle continuously back and forth in a push-pull action. SP260p & SP210c SPECIFICATIONS Mode sp260p sp210c Syringe Size sp260p sp210c Maximum Flow Rate sp260p sp210c Minimum Flow Rate Linear Force Advance Per Microstep Maximum Step Rate Minimum Step Rate Accuracy Reproducibility Dimensions Shipping Weight 86 ml/min (60 ml syringe) 86 ml/min (60 ml syringe) 0.001µl/hr 40 ib (18 kg) 0.165 µm 1600 steps/sec 1 step/100 sec < 1% error ± 0.1% 11 x 9 x 5.5 in. 28 x 23 x 14 cm 12 ib (5.4 kg) 10 µl-60 ml (four) 10 µl-60 ml (four) push-pull (single cycle) infusion/withdrawal (continuous) As two syringes are infusing, two other syringes are withdrawing at the same rate. At the end of the set volume the direction is automatically reversed and the next cycle begins. With the use of 2-way valves, the pump can empty and refill syringes for a continuous dispense. l Holds four syringes, 10 mL to 60 mL each. With larger syringes the full volume may not be usable. [With a 60 mL syringe, 40 mL is usable; with a 30 mL syringe, the full volume is usable.] Available 95-135 V or 220-240 V, 50/60 Hz Syringe Pump, Infusion & Withdrawal (double), 95-135 V Syringe Pump, Infusion & Withdrawal (double), 220-240 V Syringe Pump, Infusion-Withdrawal (double) Single Cycle Action, 95-135 V Syringe Pump, Infusion-Withdrawal (double) Single Cycle Action, 220-240 V Syringe Pump, Infusion & Withdrawl (Continuous Action), 95-135 V Syringe Pump, Infusion & Withdrawl (Continuous Action), 220-240 V All 240-volt pumps are CE-approved. ####-A Audible Alarm (add “A” to pump part number when ordering) ####-P Programmable Ramp Option (SP200 Series) OPTIONAL CABLES 15623 Serial cable, SP Pump-to-IBM 9-pin “D” connector 15624 Serial cable, SP Pump-to-Macintosh connector 15676 Serial cable, SP Pump-to-IBM 25-pin “D” connector 13685 SP Pump-to-Pump “Daisy-Chain” linking cable, 7 ft 13962 Footswitch for SP200 Series Pumps World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com SP210iw SP210iwZ SP260p SP260pZ SP210c SP210cZ UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 175
