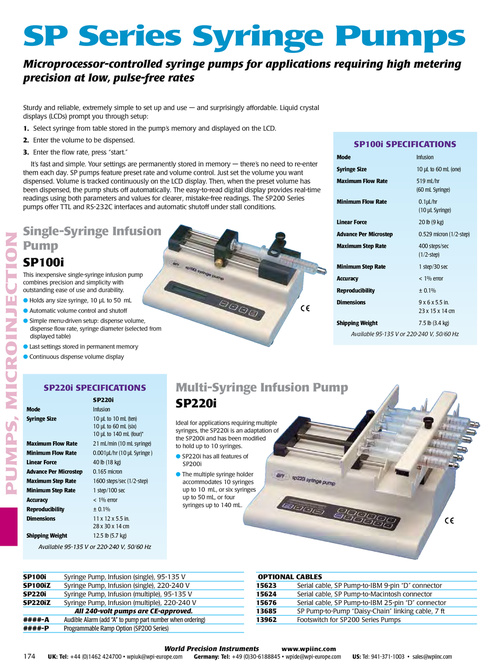

SP Series Syringe Pumps Microprocessor-controlled syringe pumps for applications requiring high metering precision at low, pulse-free rates Sturdy and reliable, extremely simple to set up and use — and surprisingly affordable. Liquid crystal displays (LCDs) prompt you through setup: 1. Select syringe from table stored in the pump’s memory and displayed on the LCD. 2. Enter the volume to be dispensed. 3. Enter the flow rate, press “start.” It’s fast and simple. Your settings are permanently stored in memory — there’s no need to re-enter them each day. SP pumps feature preset rate and volume control. Just set the volume you want dispensed. Volume is tracked continuously on the LCD display. Then, when the preset volume has been dispensed, the pump shuts off automatically. The easy-to-read digital display provides real-time readings using both parameters and values for clearer, mistake-free readings. The SP200 Series pumps offer TTL and RS-232C interfaces and automatic shutoff under stall conditions. Mode Syringe Size Maximum Flow Rate Minimum Flow Rate Linear Force Advance Per Microstep Maximum Step Rate Minimum Step Rate Accuracy Reproducibility Dimensions Shipping Weight SP100i SPECIFICATIONS infusion 10 µl to 60 ml (one) 519 ml/hr (60 ml syringe) 0.1µl/hr (10 µl syringe) 20 ib (9 kg) 0.529 micron (1/2-step) 400 steps/sec (1/2-step) 1 step/30 sec < 1% error ± 0.1% 9 x 6 x 5.5 in. 23 x 15 x 14 cm 7.5 ib (3.4 kg) PUMPS, MICROINJECTION Single-Syringe Infusion Pump SP100i This inexpensive single-syringe infusion pump combines precision and simplicity with outstanding ease of use and durability. l Holds any size syringe, 10 µL to 50 mL l Automatic volume control and shutoff l Simple menu-driven setup: dispense volume, dispense flow rate, syringe diameter (selected from displayed table) l Last settings stored in permanent memory l Continuous dispense volume display Available 95-135 V or 220-240 V, 50/60 Hz SP220i SPECIFICATIONS SP220i Mode Syringe Size infusion 10 µl to 10 ml (ten) 10 µl to 60 ml (six) 10 µl to 140 ml (four)* 21 ml/min (10 ml syringe) 0.001µl/hr (10 µl syringe ) 40 lb (18 kg) 0.165 micron 1600 steps/sec (1/2-step) 1 step/100 sec < 1% error ± 0.1% 11 x 12 x 5.5 in. 28 x 30 x 14 cm 12.5 ib (5.7 kg) Multi-Syringe Infusion Pump SP220i Ideal for applications requiring multiple syringes, the SP220i is an adaptation of the SP200i and has been modified to hold up to 10 syringes. l SP220i has all features of SP200i l The multiple syringe holder accommodates 10 syringes up to 10 mL, or six syringes up to 50 mL, or four syringes up to 140 mL. Maximum Flow Rate Minimum Flow Rate Linear Force Advance Per Microstep Maximum Step Rate Minimum Step Rate Accuracy Reproducibility Dimensions Shipping Weight Available 95-135 V or 220-240 V, 50/60 Hz SP100i SP100iZ SP220i SP220iZ ####-A ####-P Syringe Pump, Infusion (single), 95-135 V Syringe Pump, Infusion (single), 220-240 V Syringe Pump, Infusion (multiple), 95-135 V Syringe Pump, Infusion (multiple), 220-240 V All 240-volt pumps are CE-approved. audible alarm (add “a” to pump part number when ordering) programmable ramp option (sp200 series) OPTIONAL CABLES 15623 Serial cable, SP Pump-to-IBM 9-pin “D” connector 15624 Serial cable, SP Pump-to-Macintosh connector 15676 Serial cable, SP Pump-to-IBM 25-pin “D” connector 13685 SP Pump-to-Pump “Daisy-Chain” linking cable, 7 ft 13962 Footswitch for SP200 Series Pumps 174 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
