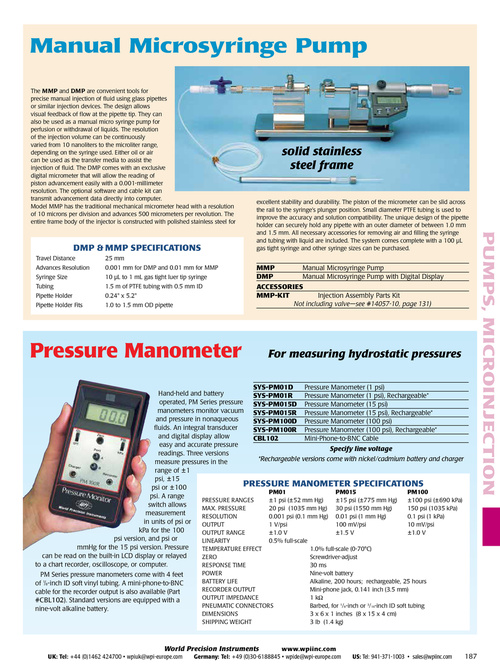

Manual Microsyringe Pump The MMP and DMP are convenient tools for precise manual injection of fluid using glass pipettes or similar injection devices. The design allows visual feedback of flow at the pipette tip. They can also be used as a manual micro syringe pump for perfusion or withdrawal of liquids. The resolution of the injection volume can be continuously varied from 10 nanoliters to the microliter range, depending on the syringe used. Either oil or air can be used as the transfer media to assist the injection of fluid. The DMP comes with an exclusive digital micrometer that will allow the reading of piston advancement easily with a 0.001-millimeter resolution. The optional software and cable kit can transmit advancement data directly into computer. Model MMP has the traditional mechanical micrometer head with a resolution of 10 microns per division and advances 500 micrometers per revolution. The entire frame body of the injector is constructed with polished stainless steel for solid stainless steel frame excellent stability and durability. The piston of the micrometer can be slid across the rail to the syringe's plunger position. Small diameter PTFE tubing is used to improve the accuracy and solution compatibility. The unique design of the pipette holder can securely hold any pipette with an outer diameter of between 1.0 mm and 1.5 mm. All necessary accessories for removing air and filling the syringe and tubing with liquid are included. The system comes complete with a 100 µL gas tight syringe and other syringe sizes can be purchased. PUMPS, MICROINJECTION DMP & MMP SPECIFICATIONS Travel Distance Advances Resolution Syringe Size Tubing Pipette Holder Pipette Holder Fits 25 mm 0.001 mm for DMP and 0.01 mm for MMP 10 µL to 1 mL gas tight luer tip syringe 1.5 m of PTFE tubing with 0.5 mm ID 0.24" x 5.2" 1.0 to 1.5 mm OD pipette MMP Manual Microsyringe Pump DMP Manual Microsyringe Pump with Digital Display ACCESSORIES MMP-KIT Injection Assembly Parts Kit Not including valve—see #14057-10, page 131) Pressure Manometer For measuring hydrostatic pressures SYS-PM01D Pressure Manometer (1 psi) Hand-held and battery SYS-PM01R Pressure Manometer (1 psi), Rechargeable* operated, PM Series pressure SYS-PM015D Pressure Manometer (15 psi) manometers monitor vacuum SYS-PM015R Pressure Manometer (15 psi), Rechargeable* and pressure in nonaqueous SYS-PM100D Pressure Manometer (100 psi) fluids. An integral transducer SYS-PM100R Pressure Manometer (100 psi), Rechargeable* and digital display allow CBL102 Mini-Phone-to-BNC Cable easy and accurate pressure Specify line voltage readings. Three versions *Rechargeable versions come with nickel/cadmium battery and charger measure pressures in the range of ±1 psi, ±15 PRESSURE MANOMETER SPECIFICATIONS psi or ±100 PM01 PM015 PM100 psi. A range PRESSURE RANgES ±1 psi (±52 mm Hg) ±15 psi (±775 mm Hg) ±100 psi (±690 kPa) switch allows MAx. PRESSURE 20 psi (1035 mm Hg) 30 psi (1550 mm Hg) 150 psi (1035 kPa) measurement RESOLUTION 0.001 psi (0.1 mm Hg) 0.01 psi (1 mm Hg) 0.1 psi (1 kPa) in units of psi or OUTPUT 1 V/psi 100 mV/psi 10 mV/psi kPa for the 100 OUTPUT RANgE ±1.0 V ±1.5 V ±1.0 V psi version, and psi or LINEARITY 0.5% full-scale mmHg for the 15 psi version. Pressure TEMPERATURE EFFECT 1.0% full-scale (0-70°C) can be read on the built-in LCD display or relayed zERO Screwdriver-adjust to a chart recorder, oscilloscope, or computer. RESPONSE TIME 30 ms POWER Nine-volt battery PM Series pressure manometers come with 4 feet BATTERY LIFE Alkaline, 200 hours; rechargeable, 25 hours of 1⁄8-inch ID soft vinyl tubing. A mini-phone-to-BNC RECORDER OUTPUT Mini-phone jack, 0.141 inch (3.5 mm) cable for the recorder output is also available (Part OUTPUT IMPEDANCE 1 kΩ #CBL102). Standard versions are equipped with a PNEUMATIC CONNECTORS Barbed, for 1/8-inch or 3/16-inch ID soft tubing nine-volt alkaline battery. DIMENSIONS SHIPPINg WEIgHT 3 x 6 x 1 inches (8 x 15 x 4 cm) 3 lb (1.4 kg) World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 187
