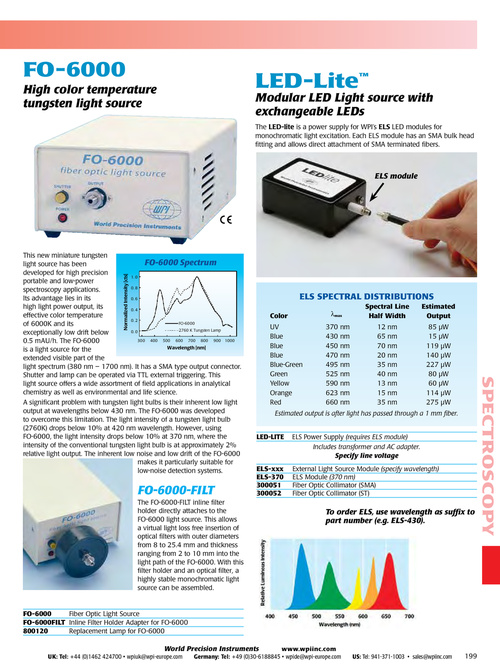

fO-6000 High color temperature tungsten light source LED-Lite™ Modular LED Light source with exchangeable LEDs The LED-lite is a power supply for WPI’s ELS LED modules for monochromatic light excitation. Each ELS module has an SMA bulk head fitting and allows direct attachment of SMA terminated fibers. ELS module This new miniature tungsten FO-6000 Spectrum light source has been developed for high precision 1. 0 portable and low-power 0. 8 spectroscopy applications. 0. 6 Its advantage lies in its high light power output, its 0. 4 effective color temperature 0. 2 FO-6000 of 6000K and its 2760 K Tungsten Lamp 0. 0 exceptionally low drift below 300 400 500 600 700 800 900 1000 0.5 mAU/h. The FO-6000 Wavelength [nm] is a light source for the extended visible part of the light spectrum (380 nm – 1700 nm). It has a SMA type output connector. Shutter and lamp can be operated via TTL external triggering. This light source offers a wide assortment of field applications in analytical chemistry as well as environmental and life science. A significant problem with tungsten light bulbs is their inherent low light output at wavelengths below 430 nm. The FO-6000 was developed to overcome this limitation. The light intensity of a tungsten light bulb (2760K) drops below 10% at 420 nm wavelength. However, using FO-6000, the light intensity drops below 10% at 370 nm, where the intensity of the conventional tungsten light bulb is at approximately 2% relative light output. The inherent low noise and low drift of the FO-6000 makes it particularly suitable for low-noise detection systems. Normalized Intensity [cts] ELS SPECtRAL DiStRiBUtiOnS Color UV Blue Blue Blue Blue-Green Green Yellow Orange Red λmax 370 nm 430 nm 450 nm 470 nm 495 nm 525 nm 590 nm 623 nm 660 nm Spectral Line Half Width 12 nm 65 nm 70 nm 20 nm 35 nm 40 nm 13 nm 15 nm 35 nm Estimated Output 85 μW 15 μW 119 μW 140 μW 227 μW 80 μW 60 μW 114 μW 275 μW SPECTROSCOPY Estimated output is after light has passed through a 1 mm fiber. LED-LitE ELS Power Supply (requires ELS module) Includes transformer and AC adapter. Specify line voltage External Light Source Module (specify wavelength) ELS Module (370 nm) Fiber Optic Collimator (SMA) Fiber Optic Collimator (ST) FO-6000-FILT The FO-6000-FILT inline filter holder directly attaches to the FO-6000 light source. This allows a virtual light loss free insertion of optical filters with outer diameters from 8 to 25.4 mm and thickness ranging from 2 to 10 mm into the light path of the FO-6000. With this filter holder and an optical filter, a highly stable monochromatic light source can be assembled. ELS-xxx ELS-370 300051 300052 To order ELS, use wavelength as suffix to part number (e.g. ELS-430). fO-6000 Fiber Optic Light Source fO-6000fiLt Inline Filter Holder Adapter for FO-6000 800120 Replacement Lamp for FO-6000 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 199
