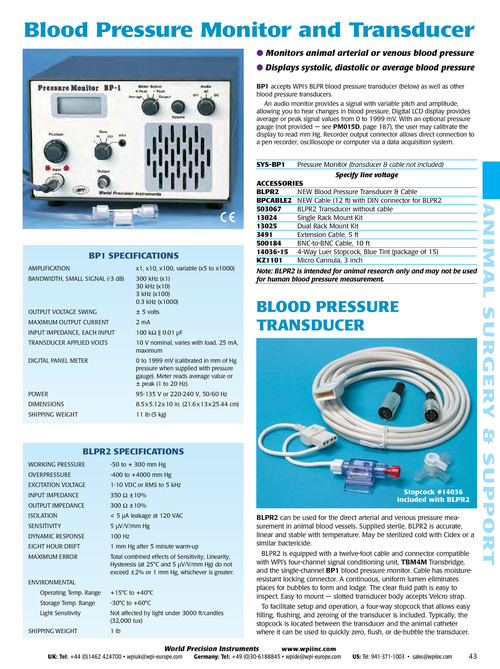

Blood Pressure monitor and transducer l Monitors animal arterial or venous blood pressure l Displays systolic, diastolic or average blood pressure BP1 accepts WPI’s BLPR blood pressure transducer (below) as well as other blood pressure transducers. An audio monitor provides a signal with variable pitch and amplitude, allowing you to hear changes in blood pressure. Digital LCD display provides average or peak signal values from 0 to 1999 mV. With an optional pressure gauge (not provided — see PM015D, page 187), the user may calibrate the display to read mm Hg. Recorder output connector allows direct connection to a pen recorder, oscilloscope or computer via a data acquisition system. BP1 SPeCiFiCatiOnS AMPLIFICATION BANDWIDTH, SMALL SIGNAL (-3 dB) x1, x10, x100, variable (x5 to x1000) 300 kHz (x1) 30 kHz (x10) 3 kHz (x100) 0.3 kHz (x1000) ± 5 volts 2 mA 100 kΩ || 0.01 µF 10 V nominal, varies with load. 25 mA, maximum 0 to 1999 mV (calibrated in mm of Hg pressure when supplied with pressure gauge). Meter reads average value or ± peak (1 to 20 Hz). 95-135 V or 220-240 V, 50/60 Hz 8.5 x 5.12 x 10 in. (21.6 x 13 x 25.44 cm) 11 lb (5 kg) Pressure Monitor (transducer & cable not included) Specify line voltage aCCeSSORieS BlPR2 NEW Blood Pressure Transducer & Cable BPCaBle2 NEW Cable (12 ft) with DIN connector for BLPR2 503067 BLPR2 Transducer without cable 13024 Single Rack Mount Kit 13025 Dual Rack Mount Kit 3491 Extension Cable, 5 ft 500184 BNC-to-BNC Cable, 10 ft 14036-15 4-Way Luer Stopcock, Blue Tint (package of 15) KZ1101 Micro Cannula, 3 inch SYS-BP1 Note: BLPR2 is intended for animal research only and may not be used for human blood pressure measurement. AN I MAL S U RGERY & S U PPORT OUTPUT VOLTAGE SWING MAxIMUM OUTPUT CURRENT INPUT IMPEDANCE, EACH INPUT TRANSDUCER APPLIED VOLTS DIGITAL PANEL METER BlOOD PReSSURe tRanSDUCeR POWER DIMENSIONS SHIPPING WEIGHT BlPR2 SPeCiFiCatiOnS WORKING PRESSURE OVERPRESSURE ExCITATION VOLTAGE INPUT IMPEDANCE OUTPUT IMPEDANCE ISOLATION SENSITIVITY DYNAMIC RESPONSE EIGHT HOUR DRIFT MAxIMUM ERROR -50 to + 300 mm Hg -400 to +4000 mm Hg 1-10 VDC or RMS to 5 kHz 350 Ω ±10% 300 Ω ±10% < 5 µA leakage at 120 VAC 5 µV/V/mm Hg 100 Hz 1 mm Hg after 5 minute warm-up Total combined effects of Sensitivity, Linearity, Hysteresis (at 25°C and 5 µV/V/mm Hg) do not exceed ±2% or 1 mm Hg, whichever is greater. +15°C to +40°C -30°C to +60°C Not affected by light under 3000 ft/candles (32,000 lux) 1 lb Stopcock #14036 included with BlPR2 BLPR2 can be used for the direct arterial and venous pressure measurement in animal blood vessels. Supplied sterile, BLPR2 is accurate, linear and stable with temperature. May be sterilized cold with Cidex or a similar bactericide. BLPR2 is equipped with a twelve-foot cable and connector compatible with WPI’s four-channel signal conditioning unit, TBM4M Transbridge, and the single-channel BP1 blood pressure monitor. Cable has moistureresistant locking connector. A continuous, uniform lumen eliminates places for bubbles to form and lodge. The clear fluid path is easy to inspect. Easy to mount — slotted transducer body accepts Velcro strap. To facilitate setup and operation, a four-way stopcock that allows easy filling, flushing, and zeroing of the transducer is included. Typically, the stopcock is located between the transducer and the animal catheter where it can be used to quickly zero, flush, or de-bubble the transducer. 43 ENVIRONMENTAL Operating Temp. Range Storage Temp. Range Light Sensitivity SHIPPING WEIGHT World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
