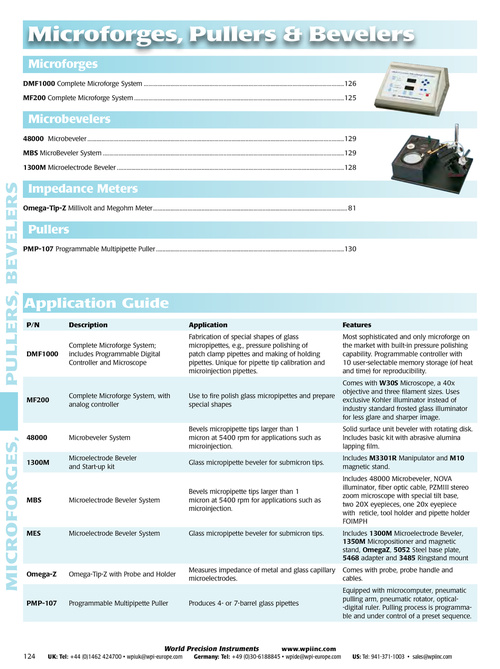

Microforges DMF1000 Complete Microforge System ................................................................................................................................126 MF200 Complete Microforge System ......................................................................................................................................125 Microbevelers 48000 Microbeveler ....................................................................................................................................................................129 MBS MicroBeveler System ..........................................................................................................................................................129 1300M Microelectrode Beveler .................................................................................................................................................128 PULLERS, BEVELERS Impedance Meters Omega-Tip-Z Millivolt and Megohm Meter ............................................................................................................................ 81 Pullers PMP-107 Programmable Multipipette Puller ........................................................................................................................130 Application Guide P/N Description Complete Microforge System; includes Programmable Digital Controller and Microscope Application Fabrication of special shapes of glass micropipettes, e.g., pressure polishing of patch clamp pipettes and making of holding pipettes. Unique for pipette tip calibration and microinjection pipettes. Use to fire polish glass micropipettes and prepare special shapes Bevels micropipette tips larger than 1 micron at 5400 rpm for applications such as microinjection. Glass micropipette beveler for submicron tips. Features Most sophisticated and only microforge on the market with built-in pressure polishing capability. Programmable controller with 10 user-selectable memory storage (of heat and time) for reproducibility. Comes with W30S Microscope, a 40x objective and three filament sizes. Uses exclusive Kohler illuminator instead of industry standard frosted glass illuminator for less glare and sharper image. Solid surface unit beveler with rotating disk. Includes basic kit with abrasive alumina lapping film. Includes M3301R Manipulator and M10 magnetic stand. Includes 48000 Microbeveler, NOVA illuminator, fiber optic cable, PZMIII stereo zoom microscope with special tilt base, two 20X eyepieces, one 20x eyepiece with reticle, tool holder and pipette holder FOIMPH Includes 1300M Microelectrode Beveler, 1350M Micropositioner and magnetic stand, OmegaZ, 5052 Steel base plate, 5468 adapter and 3485 Ringstand mount Comes with probe, probe handle and cables. Equipped with microcomputer, pneumatic pulling arm, pneumatic rotator, optical-digital ruler. Pulling process is programmable and under control of a preset sequence. DMF1000 MF200 Complete Microforge System, with analog controller MICROFORGES, 48000 1300M Microbeveler System Microelectrode Beveler and Start-up kit MBS Microelectrode Beveler System Bevels micropipette tips larger than 1 micron at 5400 rpm for applications such as microinjection. Glass micropipette beveler for submicron tips. MES Microelectrode Beveler System Omega-Z Omega-Tip-Z with Probe and Holder Measures impedance of metal and glass capillary microelectrodes. Produces 4- or 7-barrel glass pipettes PMP-107 Programmable Multipipette Puller 124 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
