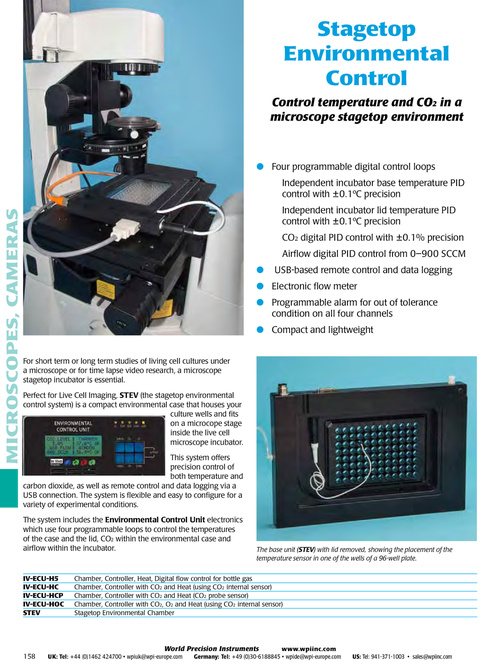

Stagetop Environmental Control Control temperature and CO2 in a microscope stagetop environment ● Four programmable digital control loops Independent incubator base temperature PID control with ±0.1ºC precision MICROSCOPES, CAMERAS Independent incubator lid temperature PID control with ±0.1ºC precision CO2 digital PID control with ±0.1% precision Airflow digital PID control from 0–900 SCCM ● USB-based remote control and data logging ● Electronic flow meter ● Programmable alarm for out of tolerance condition on all four channels ● Compact and lightweight For short term or long term studies of living cell cultures under a microscope or for time lapse video research, a microscope stagetop incubator is essential. Perfect for Live Cell Imaging, STEV (the stagetop environmental control system) is a compact environmental case that houses your culture wells and fits on a microcope stage inside the live cell microscope incubator. This system offers precision control of both temperature and carbon dioxide, as well as remote control and data logging via a USB connection. The system is flexible and easy to configure for a variety of experimental conditions. The system includes the Environmental Control Unit electronics which use four programmable loops to control the temperatures of the case and the lid, CO2 within the environmental case and airflow within the incubator. The base unit (STEV) with lid removed, showing the placement of the temperature sensor in one of the wells of a 96-well plate. IV-ECU-H5 IV-ECU-HC IV-ECU-HCP IV-ECU-HOC STEV Chamber, Controller, Heat, Digital flow control for bottle gas Chamber, Controller with CO2 and Heat (using CO2 internal sensor) Chamber, Controller with CO2 and Heat (CO2 probe sensor) Chamber, Controller with CO2, O2 and Heat (using CO2 internal sensor) Stagetop Environmental Chamber 158 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
