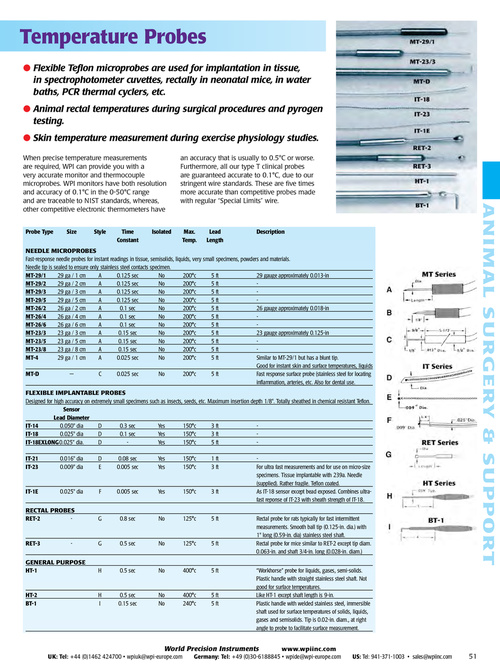

temperature Probes l Flexible Teflon microprobes are used for implantation in tissue, in spectrophotometer cuvettes, rectally in neonatal mice, in water baths, PCR thermal cyclers, etc. l Animal rectal temperatures during surgical procedures and pyrogen testing. l Skin temperature measurement during exercise physiology studies. When precise temperature measurements are required, WPI can provide you with a very accurate monitor and thermocouple microprobes. WPI monitors have both resolution and accuracy of 0.1°C in the 0-50°C range and are traceable to NIST standards, whereas, other competitive electronic thermometers have Probe Type Size Style Time Constant Isolated an accuracy that is usually to 0.5°C or worse. Furthermore, all our type T clinical probes are guaranteed accurate to 0.1°C, due to our stringent wire standards. These are five times more accurate than competitive probes made with regular “Special Limits” wire. AN I MAL S U RGERY & S U PPORT Max. Temp. Lead Length Description neeDle miCROPROBeS Fast-response needle probes for instant readings in tissue, semisolids, liquids, very small specimens, powders and materials. Needle tip is sealed to ensure only stainless steel contacts specimen. MT-29/1 29 ga / 1 cm A 0.125 sec No 200°c 5 ft 29 gauge approximately 0.013-in MT-29/2 29 ga / 2 cm A 0.125 sec No 200°c 5 ft MT-29/3 29 ga / 3 cm A 0.125 sec No 200°c 5 ft MT-29/5 29 ga / 5 cm A 0.125 sec No 200°c 5 ft MT-26/2 26 ga / 2 cm A 0.1 sec No 200°c 5 ft 26 gauge approximately 0.018-in MT-26/4 26 ga / 4 cm A 0.1 sec No 200°c 5 ft MT-26/6 26 ga / 6 cm A 0.1 sec No 200°c 5 ft MT-23/3 23 ga / 3 cm A 0.15 sec No 200°c 5 ft 23 gauge approximately 0.125-in MT-23/5 23 ga / 5 cm A 0.15 sec No 200°c 5 ft MT-23/8 23 ga / 8 cm A 0.15 sec No 200°c 5 ft MT-4 29 ga / 1 cm A 0.025 sec No 200°c 5 ft Similar to MT-29/1 but has a blunt tip. Good for instant skin and surface temperatures, liquids MT-D — C 0.025 sec No 200°c 5 ft Fast response surface probe (stainless steel for locating inflammation, arteries, etc. Also for dental use. FleXiBle imPlantaBle PROBeS Designed for high accuracy on extremely small specimens such as insects, seeds, etc. Maximum insertion depth 1/8". Totally sheathed in chemical resistant Teflon. Sensor Lead Diameter IT-14 0.050" dia D 0.3 sec Yes 150°c 3 ft 0.025" dia D 0.1 sec Yes 150°c 3 ft IT-18 IT-18EXLONG 0.025” dia. D Yes 150°c 5 ft IT-21 IT-23 0.016" dia 0.009" dia D E 0.08 sec 0.005 sec Yes Yes 150°c 150°c 1 ft 3 ft For ultra fast measurements and for use on micro-size specimens. Tissue implantable with 239a. Needle (supplied). Rather fragile. Teflon coated. As IT-18 sensor except bead exposed. Combines ultrafast reponse of IT-23 with sheath strength of IT-18. Rectal probe for rats typically for fast intermittent measurements. Smooth ball tip (0.125-in. dia.) with 1" long (0.59-in. dia) stainless steel shaft. Rectal probe for mice similar to RET-2 except tip diam. 0.063-in. and shaft 3/4-in. long (0.028-in. diam.) “Workhorse” probe for liquids, gases, semi-solids. Plastic handle with straight stainless steel shaft. Not good for surface temperatures. Like HT-1 except shaft length is 9-in. Plastic handle with welded stainless steel, immersible shaft used for surface temperatures of solids, liquids, gases and semisolids. Tip is 0.02-in. diam., at right angle to probe to facilitate surface measurement. IT-1E 0.025" dia F 0.005 sec Yes 150°c 3 ft ReCtal PROBeS RET-2 - G 0.8 sec No 125°c 5 ft RET-3 - G 0.5 sec No 125°c 5 ft GeneRal PURPOSe HT-1 H 0.5 sec No 400°c 5 ft HT-2 BT-1 H I 0.5 sec 0.15 sec No No 400°c 240°c 5 ft 5 ft World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 51
