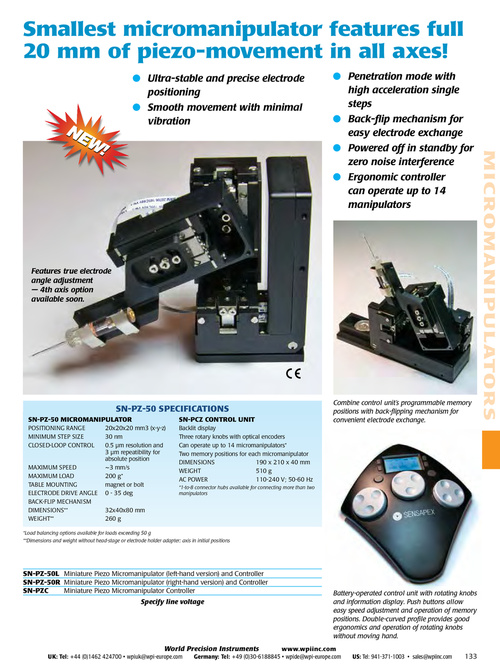

Smallest micromanipulator features full 20 mm of piezo-movement in all axes! ● Ultra-stable and precise electrode positioning ● Smooth movement with minimal vibration ● Penetration mode with high acceleration single steps ● Back-flip mechanism for easy electrode exchange ● Powered off in standby for zero noise interference ● Ergonomic controller can operate up to 14 manipulators M ICROMAN I PU LATORS Features true electrode angle adjustment — 4th axis option available soon. SN-PZ-50 SPecificatioNS SN-PZ-50 MicroMaNiPulator POsITIOnIng rAnge MInIMuM sTeP sIze ClOsed-lOOP COnTrOl 20x20x20 mm3 (x-y-z) 30 nm 0.5 µm resolution and 3 µm repeatibility for absolute position ~3 mm/s 200 g* magnet or bolt 0 - 35 deg 32x40x80 mm 260 g SN-PcZ coNtrol uNit backlit display Three rotary knobs with optical encoders Can operate up to 14 micromanipulators* Two memory positions for each micromanipulator dIMensIOns 190 x 210 x 40 mm WeIgHT 510 g AC POWer 110-240 v; 50-60 Hz *1-to-8 connector hubs available for connecting more than two manipulators Combine control unit’s programmable memory positions with back-flipping mechanism for convenient electrode exchange. MAxIMuM sPeed MAxIMuM lOAd TAble MOunTIng eleCTrOde drIve Angle bACk-flIP MeCHAnIsM dIMensIOns** WeIgHT** *Load balancing options available for loads exceeding 50 g **Dimensions and weight without head-stage or electrode holder adapter; axis in initial positions SN-PZ-50l Miniature Piezo Micromanipulator (left-hand version) and Controller SN-PZ-50r Miniature Piezo Micromanipulator (right-hand version) and Controller SN-PZc Miniature Piezo Micromanipulator Controller Specify line voltage Battery-operated control unit with rotating knobs and information display. Push buttons allow easy speed adjustment and operation of memory positions. Double-curved profile provides good ergonomics and operation of rotating knobs without moving hand. US: Tel: 941-371-1003 • sales@wpiinc.com World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com 133
