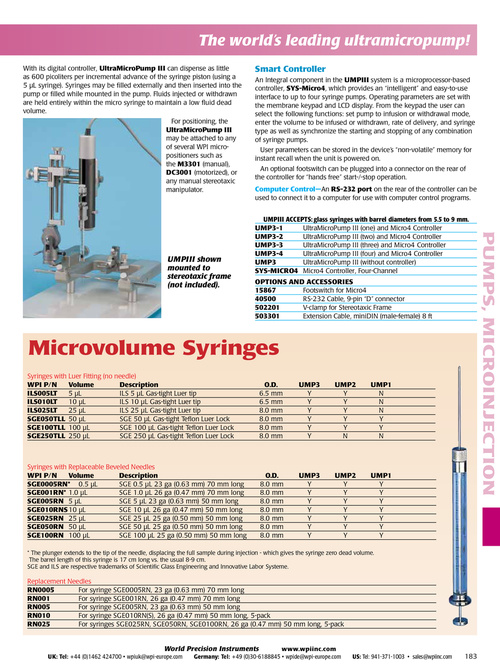

The world’s leading ultramicropump! With its digital controller, UltraMicroPump III can dispense as little as 600 picoliters per incremental advance of the syringe piston (using a 5 µL syringe). Syringes may be filled externally and then inserted into the pump or filled while mounted in the pump. Fluids injected or withdrawn are held entirely within the micro syringe to maintain a low fluid dead volume. For positioning, the UltraMicroPump III may be attached to any of several WPI micropositioners such as the M3301 (manual), DC3001 (motorized), or any manual stereotaxic manipulator. Smart Controller An Integral component in the UMPIII system is a microprocessor-based controller, SYS-Micro4, which provides an “intelligent” and easy-to-use interface to up to four syringe pumps. Operating parameters are set with the membrane keypad and LCD display. From the keypad the user can select the following functions: set pump to infusion or withdrawal mode, enter the volume to be infused or withdrawn, rate of delivery, and syringe type as well as synchronize the starting and stopping of any combination of syringe pumps. User parameters can be stored in the device’s “non-volatile” memory for instant recall when the unit is powered on. An optional footswitch can be plugged into a connector on the rear of the controller for “hands free” start-/-stop operation. Computer Control—An RS-232 port on the rear of the controller can be used to connect it to a computer for use with computer control programs. UMPIII ACCEPTS: glass syringes with barrel diameters from 5.5 to 9 mm. UMP3-1 UltraMicroPump III (one) and Micro4 Controller UMP3-2 UltraMicroPump III (two) and Micro4 Controller UMP3-3 UltraMicroPump III (three) and Micro4 Controller UMP3-4 UltraMicroPump III (four) and Micro4 Controller UMP3 UltraMicroPump III (without controller) SYS-MICRO4 Micro4 Controller, Four-Channel OPTIONS AND ACCESSORIES 15867 Footswitch for Micro4 40500 RS-232 Cable, 9-pin “D” connector 502201 V-clamp for Stereotaxic Frame 503301 Extension Cable, miniDIN (male-female) 8 ft PUMPS, MICROINJECTION UMPIII shown mounted to stereotaxic frame (not included). Microvolume Syringes Syringes with Luer Fitting (no needle) WPI P/N Volume Description ILS005LT 5 µL ILS 5 µL gas-tight Luer tip ILS010LT 10 µL ILS 10 µL gas-tight Luer tip ILS025LT 25 µL ILS 25 µL gas-tight Luer tip SGE050TLL 50 µL SgE 50 µL gas-tight Teflon Luer Lock SGE100TLL 100 µL SgE 100 µL gas-tight Teflon Luer Lock SGE250TLL 250 µL SgE 250 µL gas-tight Teflon Luer Lock O.D. 6.5 mm 6.5 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm UMP3 Y Y Y Y Y Y UMP2 Y Y Y Y Y N UMP1 N N N Y Y N Syringes with Replaceable Beveled Needles WPI P/N Volume Description SGE0005RN* 0.5 µL SgE 0.5 µL 23 ga (0.63 mm) 70 mm long SGE001RN* 1.0 µL SgE 1.0 µL 26 ga (0.47 mm) 70 mm long SGE005RN 5 µL SgE 5 µL 23 ga (0.63 mm) 50 mm long SGE010RNS 10 µL SgE 10 µL 26 ga (0.47 mm) 50 mm long SGE025RN 25 µL SgE 25 µL 25 ga (0.50 mm) 50 mm long SGE050RN 50 µL SgE 50 µL 25 ga (0.50 mm) 50 mm long SGE100RN 100 µL SgE 100 µL 25 ga (0.50 mm) 50 mm long O.D. 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm UMP3 Y Y Y Y Y Y Y UMP2 Y Y Y Y Y Y Y UMP1 Y Y Y Y Y Y Y * The plunger extends to the tip of the needle, displacing the full sample during injection - which gives the syringe zero dead volume. The barrel length of this syringe is 17 cm long vs. the usual 8-9 cm. SgE and ILS are respective trademarks of Scientific glass Engineering and Innovative Labor Systeme. Replacement Needles RN0005 For syringe SgE0005RN, 23 ga (0.63 mm) 70 mm long RN001 For syringe SgE001RN, 26 ga (0.47 mm) 70 mm long RN005 For syringe SgE005RN, 23 ga (0.63 mm) 50 mm long RN010 For syringe SgE010RN(S), 26 ga (0.47 mm) 50 mm long, 5-pack RN025 For syringes SgE025RN, SgE050RN, SgE0100RN, 26 ga (0.47 mm) 50 mm long, 5-pack World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 183
