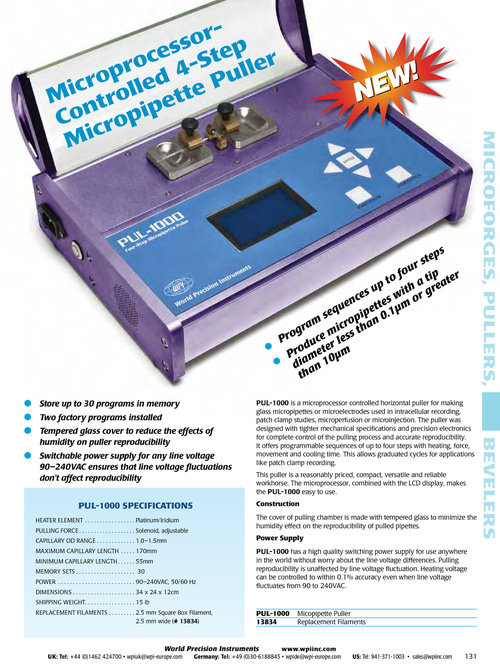

or- p ess Ste roc 4- uller rop lled e P c Mi tro et t p n Co ropi c Mi MICROFORGES, PULLERS, ps ste r fou tip er to a at up ith r gre s e nc ttes wm o ue µ e seq pip 0.1 o an m ra icr h og ce m ess t Pr du r l ● ro ete µm P m 0 ● dia n1 tha ● Store up to 30 programs in memory ● Two factory programs installed ● Tempered glass cover to reduce the effects of humidity on puller reproducibility PUL-1000 is a microprocessor controlled horizontal puller for making glass micropipettes or microelectrodes used in intracellular recording, patch clamp studies, microperfusion or microinjection. The puller was designed with tighter mechanical specifications and precision electronics for complete control of the pulling process and accurate reproducibility. It offers programmable sequences of up to four steps with heating, force, movement and cooling time. This allows graduated cycles for applications like patch clamp recording. This puller is a reasonably priced, compact, versatile and reliable workhorse. The microprocessor, combined with the LCD display, makes the PUL-1000 easy to use. Construction The cover of pulling chamber is made with tempered glass to minimize the humidity effect on the reproducibility of pulled pipettes. Power Supply PUL-1000 has a high quality switching power supply for use anywhere in the world without worry about the line voltage differences. Pulling reproducibility is unaffected by line voltage fluctuation. Heating voltage can be controlled to within 0.1% accuracy even when line voltage fluctuates from 90 to 240VAC. BEVELERS ● Switchable power supply for any line voltage 90–240VAC ensures that line voltage fluctuations don't affect reproducibility PUL-1000 SPeCifiCationS HeATer eLemenT . . . . . . . . . . . . . . . . . Platinum/Iridium PuLLIng ForCe . . . . . . . . . . . . . . . . . . . Solenoid, adjustable CAPILLAry oD rAnge . . . . . . . . . . . . . 1.0–1.5mm mAxImum CAPILLAry LengTH . . . . . 170mm mInImum CAPILLAry LengTH . . . . . . 55mm memory SeTS . . . . . . . . . . . . . . . . . . . . 30 Power . . . . . . . . . . . . . . . . . . . . . . . . . . 90–240VAC, 50/60 Hz DImenSIonS . . . . . . . . . . . . . . . . . . . . . 34 x 24 x 12cm SHIPPIng weIgHT. . . . . . . . . . . . . . . . . 15 lb rePLACemenT FILAmenTS . . . . . . . . . 2.5 mm Square Box Filament, 2.5 mm wide (# 13834) PUL-1000 13834 micopipette Puller replacement Filaments World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 131
