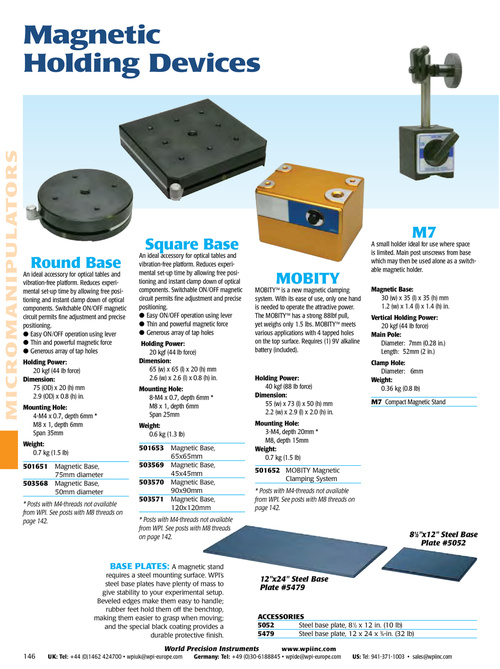

Magnetic Holding Devices M ICROMAN I PU LATORS An ideal accessory for optical tables and vibration-free platform. Reduces experimental set-up time by allowing free positioning and instant clamp down of optical components. Switchable ON/OFF magnetic circuit permits fine adjustment and precise positioning. ● Easy ON/OFF operation using lever ● Thin and powerful magnetic force ● Generous array of tap holes Holding Power: 20 kgf (44 Ib force) Dimension: 75 (OD) x 20 (h) mm 2.9 (OD) x 0.8 (h) in. Mounting Hole: 4-M4 x 0.7, depth 6mm * M8 x 1, depth 6mm Span 35mm Weight: 0.7 kg (1.5 Ib) 501651 503568 Magnetic base, 75mm diameter Magnetic base, 50mm diameter round Base An ideal accessory for optical tables and vibration-free platform. Reduces experimental set-up time by allowing free positioning and instant clamp down of optical components. Switchable ON/OFF magnetic circuit permits fine adjustment and precise positioning. ● Easy ON/OFF operation using lever ● Thin and powerful magnetic force ● Generous array of tap holes Holding Power: 20 kgf (44 Ib force) Dimension: 65 (w) x 65 (l) x 20 (h) mm 2.6 (w) x 2.6 (l) x 0.8 (h) in. Mounting Hole: 8-M4 x 0.7, depth 6mm * M8 x 1, depth 6mm Span 25mm Weight: 0.6 kg (1.3 Ib) 501653 503569 503570 503571 Magnetic base, 65x65mm Magnetic base, 45x45mm Magnetic base, 90x90mm Magnetic base, 120x120mm Square Base MOBITYTM is a new magnetic clamping system. With its ease of use, only one hand is needed to operate the attractive power. The MOBITYTM has a strong 88lbf pull, yet weighs only 1.5 lbs. MOBITYTM meets various applications with 4 tapped holes on the top surface. Requires (1) 9V alkaline battery (included). MoBitY A small holder ideal for use where space is limited. Main post unscrews from base which may then be used alone as a switchable magnetic holder. Magnetic Base: 30 (w) x 35 (l) x 35 (h) mm 1.2 (w) x 1.4 (l) x 1.4 (h) in. Vertical Holding Power: 20 kgf (44 Ib force) Main Pole: Diameter: 7mm (0.28 in.) Length: 52mm (2 in.) Clamp Hole: Diameter: 6mm Weight: 0.36 kg (0.8 Ib) M7 Compact Magnetic Stand M7 Holding Power: 40 kgf (88 Ib force) Dimension: 55 (w) x 73 (l) x 50 (h) mm 2.2 (w) x 2.9 (l) x 2.0 (h) in. Mounting Hole: 3-M4, depth 20mm * M8, depth 15mm Weight: 0.7 kg (1.5 Ib) 501652 MObITY Magnetic Clamping system * Posts with M4-threads not available from WPI. See posts with M8 threads on page 142. * Posts with M4-threads not available from WPI. See posts with M8 threads on page 142. 81⁄2"x12" Steel Base Plate #5052 * Posts with M4-threads not available from WPI. See posts with M8 threads on page 142. BaSe PlateS: A magnetic stand requires a steel mounting surface. WPI’s steel base plates have plenty of mass to give stability to your experimental setup. beveled edges make them easy to handle; rubber feet hold them off the benchtop, making them easier to grasp when moving; and the special black coating provides a durable protective finish. 146 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com 12"x24" Steel Base Plate #5479 acceSSorieS 5052 steel base plate, 81⁄2 x 12 in. (10 lb) 5479 steel base plate, 12 x 24 x 3⁄8-in. (32 lb) US: Tel: 941-371-1003 • sales@wpiinc.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com
