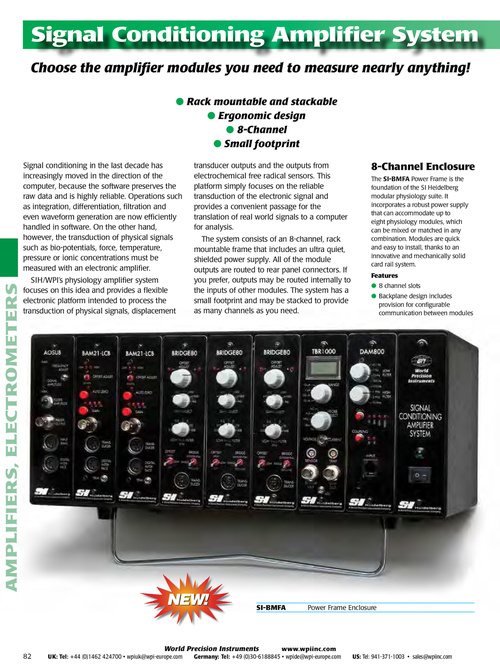

Choose the amplifier modules you need to measure nearly anything! l Rack mountable and stackable l Ergonomic design l 8-Channel l Small footprint Signal conditioning in the last decade has increasingly moved in the direction of the computer, because the software preserves the raw data and is highly reliable. Operations such as integration, differentiation, filtration and even waveform generation are now efficiently handled in software. On the other hand, however, the transduction of physical signals such as bio-potentials, force, temperature, pressure or ionic concentrations must be measured with an electronic amplifier. transducer outputs and the outputs from electrochemical free radical sensors. This platform simply focuses on the reliable transduction of the electronic signal and provides a convenient passage for the translation of real world signals to a computer for analysis. The system consists of an 8-channel, rack mountable frame that includes an ultra quiet, shielded power supply. All of the module outputs are routed to rear panel connectors. If you prefer, outputs may be routed internally to the inputs of other modules. The system has a small footprint and may be stacked to provide as many channels as you need. 8-Channel Enclosure The SI-BMFA power Frame is the foundation of the SI Heidelberg modular physiology suite. It incorporates a robust power supply that can accommodate up to eight physiology modules, which can be mixed or matched in any combination. modules are quick and easy to install, thanks to an innovative and mechanically solid card rail system. Features l 8 channel slots l Backplane design includes provision for configurable communication between modules AMPLIFIERS, ELECTROMETERS SIH/WpI’s physiology amplifier system focuses on this idea and provides a flexible electronic platform intended to process the transduction of physical signals, displacement Si-BMFa power Frame enclosure 82 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
