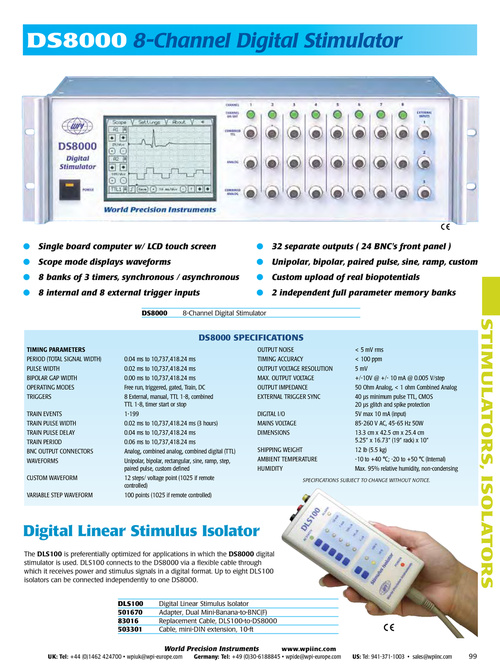

DS8000 8-Channel Digital Stimulator ● Single board computer w/ LCD touch screen ● 32 separate outputs ( 24 BNC's front panel ) ● Unipolar, bipolar, paired pulse, sine, ramp, custom ● Custom upload of real biopotentials ● 2 independent full parameter memory banks ● Scope mode displays waveforms ● 8 banks of 3 timers, synchronous / asynchronous ● 8 internal and 8 external trigger inputs DS8000 8-Channel Digital Stimulator STIMULATORS, ISOLATORS DS8000 SPECIFICATIONS Timing parameTers Period (total signal width) Pulse width BiPolar gaP width oPerating Modes triggers train events train Pulse width train Pulse delaY train Period BnC outPut ConneCtors waveForMs CustoM waveForM variaBle steP waveForM 0.04 ms to 10,737,418.24 ms 0.02 ms to 10,737,418.24 ms 0.00 ms to 10,737,418.24 ms Free run, triggered, gated, train, dC 8 external, manual, ttl 1-8, combined ttl 1-8, timer start or stop 1-199 0.02 ms to 10,737,418.24 ms (3 hours) 0.04 ms to 10,737,418.24 ms 0.06 ms to 10,737,418.24 ms analog, combined analog, combined digital (ttl) unipolar, bipolar, rectangular, sine, ramp, step, paired pulse, custom defined 12 steps/ voltage point (1025 if remote controlled) 100 points (1025 if remote controlled) outPut noise tiMing aCCuraCY outPut voltage resolution Max. outPut voltage outPut iMPedanCe external trigger sYnC digital i/o Mains voltage diMensions shiPPing weight aMBient teMPerature huMiditY < 5 mv rms < 100 ppm 5 mv +/-10v @ +/- 10 ma @ 0.005 v/step 50 ohm analog, < 1 ohm Combined analog 40 µs minimum pulse ttl, CMos 20 µs glitch and spike protection 5v max 10 ma (input) 85-260 v aC, 45-65 hz 50w 13.3 cm x 42.5 cm x 25.4 cm 5.25” x 16.73” (19” rack) x 10” 12 lb (5.5 kg) -10 to +40 °C; -20 to +50 °C (internal) Max. 95% relative humidity, non-condensing SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. Digital Linear Stimulus Isolator The DlS100 is preferentially optimized for applications in which the DS8000 digital stimulator is used. DLS100 connects to the DS8000 via a flexible cable through which it receives power and stimulus signals in a digital format. Up to eight DLS100 isolators can be connected independently to one DS8000. DLS100 501670 83016 503301 Digital Linear Stimulus Isolator Adapter, Dual Mini-Banana-to-BNC(F) Replacement Cable, DLS100-to-DS8000 Cable, mini-DIN extension, 10-ft World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 99
