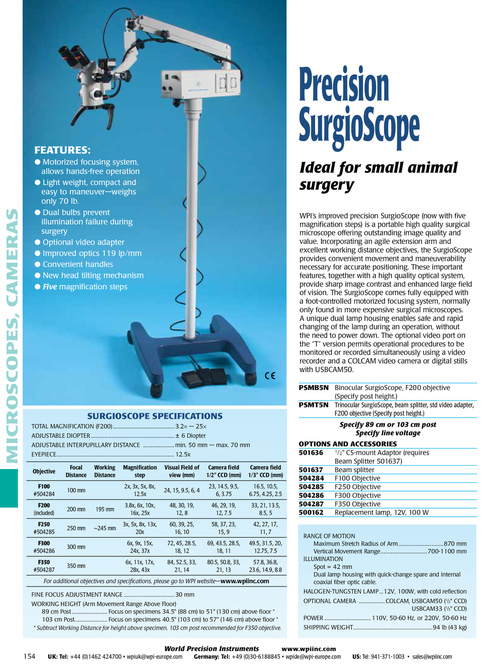

FEATURES: ● Motorized focusing system, allows hands-free operation ● Light weight, compact and easy to maneuver—weighs only 70 lb. ● Dual bulbs prevent illumination failure during surgery ● Optional video adapter ● Improved optics 119 lp/mm ● Convenient handles ● New head tilting mechanism ● Five magnification steps Precision SurgioScope Ideal for small animal surgery WPI’s improved precision SurgioScope (now with five magnification steps) is a portable high quality surgical microscope offering outstanding image quality and value. Incorporating an agile extension arm and excellent working distance objectives, the SurgioScope provides convenient movement and maneuverability necessary for accurate positioning. These important features, together with a high quality optical system, provide sharp image contrast and enhanced large field of vision. The SurgioScope comes fully equipped with a foot-controlled motorized focusing system, normally only found in more expensive surgical microscopes. A unique dual lamp housing enables safe and rapid changing of the lamp during an operation, without the need to power down. The optional video port on the “T” version permits operational procedures to be monitored or recorded simultaneously using a video recorder and a COLCAM video camera or digital stills with USBCAM50. PSMB5N Binocular SurgioScope, F200 objective (Specify post height.) PSMT5N Trinocular SurgioScope, beam splitter, std video adapter, F200 objective (Specify post height.) Specify 89 cm or 103 cm post Specify line voltage OPTIONS AND ACCESSORIES 1 501636 /2" CS-mount Adaptor (requires Beam Splitter 501637) 501637 Beam splitter 504284 F100 Objective 504285 F250 Objective 504286 F300 Objective 504287 F350 Objective 500162 Replacement lamp, 12V, 100 W RANGE OF MOTION Maximum Stretch Radius of Arm .................................870 mm Vertical Movement Range ..................................700-1100 mm ILLUMINATION Spot = 42 mm Dual lamp housing with quick-change spare and internal coaxial fiber optic cable. HALOGEN-TUNGSTEN LAMP ...12V, 100W, with cold reflection OPTIONAL CAMERA ................... COLCAM, USBCAM50 (1⁄2" CCD) USBCAM33 (1⁄3" CCD) POWER .................................. 110V, 50-60 Hz, or 220V, 50-60 Hz SHIPPING WEIGHT..........................................................94 lb (43 kg) MICROSCOPES, CAMERAS SURGIOSCOPE SPECIFICATIONS TOTAL MAGNIFICATION (F200) ............................................. 3.2× — 25× ADJUSTABLE DIOPTER ............................................................. ± 6 Diopter ADJUSTABLE INTERPUPILLARY DISTANCE ....................... min. 50 mm — max. 70 mm EYEPIECE ...................................................................................... 12.5x Objective F100 #504284 F200 (included) F250 #504285 F300 #504286 F350 #504287 Focal Distance 100 mm 200 mm 250 mm 300 mm 350 mm 195 mm ~245 mm Working Distance Magnification step 2x, 3x, 5x, 8x, 12.5x 3.8x, 6x, 10x, 16x, 25x 3x, 5x, 8x, 13x, 20x 6x, 9x, 15x, 24x, 37x 6x, 11x, 17x, 28x, 43x Visual Field of view (mm) 24, 15, 9.5, 6, 4 48, 30, 19, 12, 8 60, 39, 25, 16, 10 72, 45, 28.5, 18, 12 84, 52.5, 33, 21, 14 Camera field 1/2" CCD (mm) 23, 14.5, 9.5, 6, 3.75 46, 29, 19, 12, 7.5 58, 37, 23, 15, 9 69, 43.5, 28.5, 18, 11 80.5, 50.8, 33, 21, 13 Camera field 1/3" CCD (mm) 16.5, 10.5, 6.75, 4.25, 2.5 33, 21, 13.5, 8.5, 5 42, 27, 17, 11, 7 49.5, 31.5, 20, 12.75, 7.5 57.8, 36.8, 23.6, 14.9, 8.8 For additional objectives and specifications, please go to WPI website—www.wpiinc.com FINE FOCUS ADJUSTMENT RANGE ..................................... 30 mm WORKING HEIGHT (Arm Movement Range Above Floor) 89 cm Post .......................... Focus on specimens 34.5" (88 cm) to 51" (130 cm) above floor * 103 cm Post........................ Focus on specimens 40.5" (103 cm) to 57" (146 cm) above floor * * Subtract Working Distance for height above specimen, 103 cm post recommended for F350 objective. 154 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
