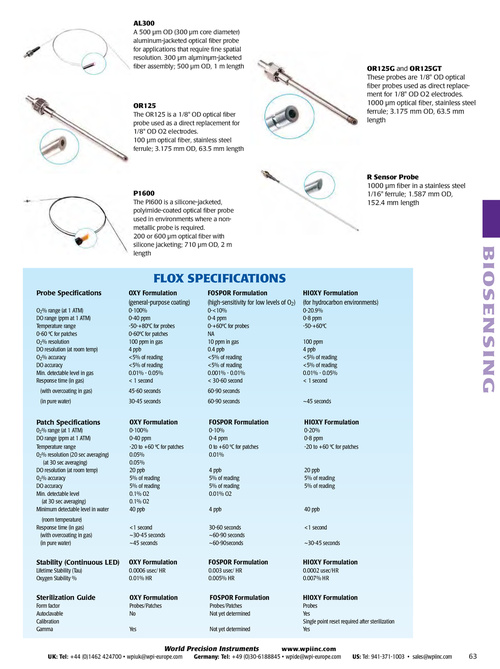

aL300 A 500 µm OD (300 µm core diameter) aluminum-jacketed optical fiber probe for applications that require fine spatial resolution. 300 µm alµminµm-jacketed fiber assembly; 500 µm OD, 1 m length or125 The OR125 is a 1/8" OD optical fiber probe used as a direct replacement for 1/8" OD O2 electrodes. 100 µm optical fiber, stainless steel ferrule; 3.175 mm OD, 63.5 mm length or125G and or125Gt These probes are 1/8" OD optical fiber probes used as direct replacement for 1/8" OD O2 electrodes. 1000 µm optical fiber, stainless steel ferrule; 3.175 mm OD, 63.5 mm length p1600 The PI600 is a silicone-jacketed, polyimide-coated optical fiber probe used in environments where a nonmetallic probe is required. 200 or 600 µm optical fiber with silicone jacketing; 710 µm OD, 2 m length r Sensor probe 1000 µm fiber in a stainless steel 1/16" ferrule; 1.587 mm OD, 152.4 mm length BIOS EN S I NG FLoX SpeciFicationS Probe Specifications O2% range (at 1 ATM) DO range (ppm at 1 ATM) Temperature range 0-60 ºC for patches O2% resolution DO resolution (at room temp) O2% accuracy DO accuracy Min. detectable level in gas Response time (in gas) (with overcoating in gas) (in pure water) OXY Formulation (general-purpose coating) 0-100% 0-40 ppm -50-+80ºC for probes 0-60ºC for patches 100 ppm in gas 4 ppb <5% of reading <5% of reading 0.01% - 0.05% < 1 second 45-60 seconds 30-45 seconds FOSPOR Formulation (high-sensitivity for low levels of O2) 0-<10% 0-4 ppm 0-+60ºC for probes NA 10 ppm in gas 0.4 ppb <5% of reading <5% of reading 0.001% - 0.01% < 30-60 second 60-90 seconds 60-90 seconds HIOXY Formulation (for hydrocarbon environments) 0-20.9% 0-8 ppm -50-+60ºC 100 ppm 4 ppb <5% of reading <5% of reading 0.01% - 0.05% < 1 second ~45 seconds Patch Specifications 02% range (at 1 ATM) DO range (ppm at 1 ATM) Temperature range 02% resolution (20 sec averaging) (at 30 sec averaging) DO resolution (at room temp) 02% accuracy DO accuracy Min. detectable level (at 30 sec averaging) Minimum detectable level in water (room temperature) Response time (in gas) (with overcoating in gas) (in pure water) OXY Formulation 0-100% 0-40 ppm -20 to +60 ºC for patches 0.05% 0.05% 20 ppb 5% of reading 5% of reading 0.1% O2 0.1% O2 40 ppb <1 second ~30-45 seconds ~45 seconds FOSPOR Formulation 0-10% 0-4 ppm 0 to +60 ºC for patches 0.01% 4 ppb 5% of reading 5% of reading 0.01% O2 4 ppb 30-60 seconds ~60-90 seconds ~60-90seconds HIOXY Formulation 0-20% 0-8 ppm -20 to +60 ºC for patches 20 ppb 5% of reading 5% of reading 40 ppb <1 second ~30-45 seconds Stability (Continuous LED) Lifetime Stability (Tau) Oxygen Stability % OXY Formulation 0.0006 usec/ HR 0.01% HR FOSPOR Formulation 0.003 usec/ HR 0.005% HR HIOXY Formulation 0.0002 usec/HR 0.007% HR Sterilization Guide Form factor Autoclavable Calibration Gamma OXY Formulation Probes/Patches No Yes FOSPOR Formulation Probes/Patches Not yet determined Not yet determined HIOXY Formulation Probes Yes Single point reset required after sterilization Yes World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 63
