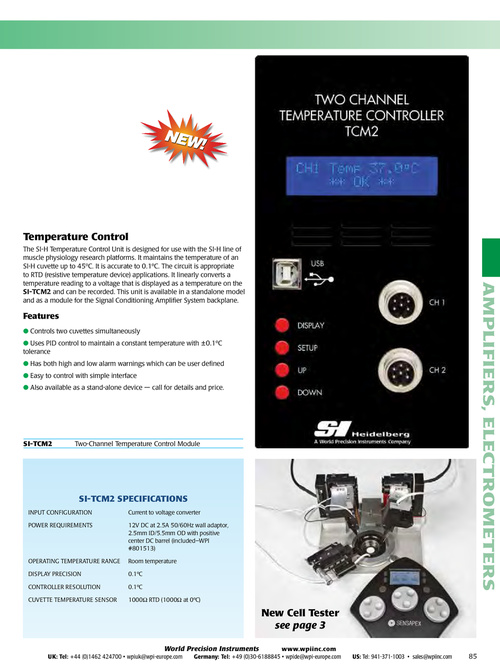

temperature Control The SI-H Temperature Control unit is designed for use with the SI-H line of muscle physiology research platforms. It maintains the temperature of an SI-H cuvette up to 45ºC. It is accurate to 0.1ºC. The circuit is appropriate to rTD (resistive temperature device) applications. It linearly converts a temperature reading to a voltage that is displayed as a temperature on the SI-TCM2 and can be recorded. This unit is available in a standalone model and as a module for the Signal Conditioning Amplifier System backplane. AMPLIFIERS, ELECTROMETERS Features l Controls two cuvettes simultaneously l uses pID control to maintain a constant temperature with ±0.1ºC tolerance l Has both high and low alarm warnings which can be user defined l easy to control with simple interface l Also available as a stand-alone device — call for details and price. Si-tCM2 Two-Channel Temperature Control module Si-tCM2 SpECiFiCationS INpuT CONFIGurATION pOWer requIremeNTS Current to voltage converter 12V DC at 2.5A 50/60Hz wall adaptor, 2.5mm ID/5.5mm OD with positive center DC barrel (included–WpI #801513) room temperature 0.1ºC 0.1ºC 1000Ω rTD (1000Ω at 0ºC) OperATING TemperATure rANGe DISpLAy preCISION CONTrOLLer reSOLuTION CuVeTTe TemperATure SeNSOr new Cell tester see page 3 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 85
