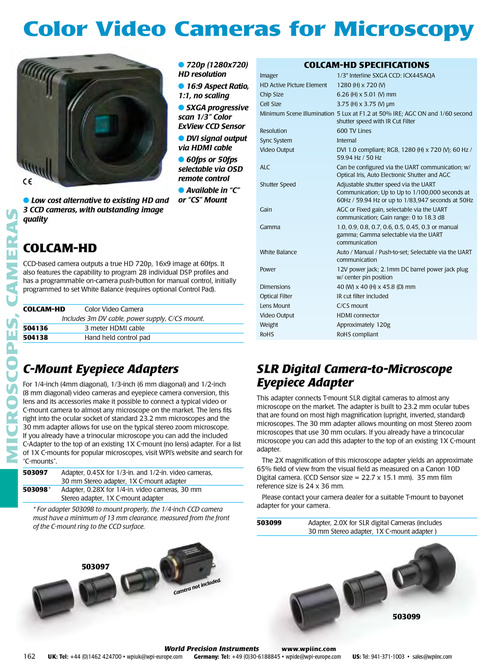

Color Video Cameras for Microscopy ● 720p (1280x720) HD resolution ● 16:9 Aspect Ratio, 1:1, no scaling ● SXGA progressive scan 1/3” Color ExView CCD Sensor ● DVI signal output via HDMI cable ● 60fps or 50fps selectable via OSD remote control ● Low cost alternative to existing HD and 3 CCD cameras, with outstanding image quality ● Available in “C” or “CS” Mount COLCAM-HD SPECIFICATIONS Imager HD Active Picture Element Chip Size Cell Size 1/3" Interline SXGA CCD: ICX445AQA 1280 (H) x 720 (V) 6.26 (H) x 5.01 (V) mm 3.75 (H) x 3.75 (V) μm Minimum Scene Illumination 5 Lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter Resolution Sync System Video Output ALC Shutter Speed 600 TV Lines Internal DVI 1.0 compliant; RGB, 1280 (H) x 720 (V); 60 Hz / 59.94 Hz / 50 Hz Can be configured via the UART communication; w/ Optical Iris, Auto Electronic Shutter and AGC Adjustable shutter speed via the UART Communication; Up to Up to 1/100,000 seconds at 60Hz / 59.94 Hz or up to 1/83,947 seconds at 50Hz AGC or Fixed gain, selectable via the UART communication; Gain range: 0 to 18.3 dB 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via the UART communication Auto / Manual / Push-to-set; Selectable via the UART communication 12V power jack; 2.1mm DC barrel power jack plug w/ center pin position 40 (W) x 40 (H) x 45.8 (D) mm IR cut filter included C/CS mount HDMI connector Approximately 120g RoHS compliant MICROSCOPES, CAMERAS Gain Gamma COLCAM-HD CCD-based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control, initially programmed to set White Balance (requires optional Control Pad). COLCAM-HD Color Video Camera Includes 3m DV cable, power supply, C/CS mount. 504136 3 meter HDMI cable 504138 Hand held control pad White Balance Power Dimensions Optical Filter Lens Mount Video Output Weight RoHS C-Mount Eyepiece Adapters For 1/4-inch (4mm diagonal), 1/3-inch (6 mm diagonal) and 1/2-inch (8 mm diagonal) video cameras and eyepiece camera conversion, this lens and its accessories make it possible to connect a typical video or C-mount camera to almost any microscope on the market. The lens fits right into the ocular socket of standard 23.2 mm microscopes and the 30 mm adapter allows for use on the typical stereo zoom microscope. If you already have a trinocular microscope you can add the included C-Adapter to the top of an existing 1X C-mount (no lens) adapter. For a list of 1X C-mounts for popular microscopes, visit WPI’s website and search for “C-mounts”. 503097 503098 * Adapter, 0.45X for 1/3-in. and 1/2-in. video cameras, 30 mm Stereo adapter, 1X C-mount adapter Adapter, 0.28X for 1/4-in. video cameras, 30 mm Stereo adapter, 1X C-mount adapter SLR Digital Camera-to-Microscope Eyepiece Adapter This adapter connects T-mount SLR digital cameras to almost any microscope on the market. The adapter is built to 23.2 mm ocular tubes that are found on most high magnification (upright, inverted, standard) microscopes. The 30 mm adapter allows mounting on most Stereo zoom microscopes that use 30 mm oculars. If you already have a trincocular microscope you can add this adapter to the top of an existing 1X C-mount adapter. The 2X magnification of this microscope adapter yields an approximate 65% field of view from the visual field as measured on a Canon 10D Digital camera. (CCD Sensor size = 22.7 x 15.1 mm). 35 mm film reference size is 24 x 36 mm. Please contact your camera dealer for a suitable T-mount to bayonet adapter for your camera. 503099 Adapter, 2.0X for SLR digital Cameras (includes 30 mm Stereo adapter, 1X C-mount adapter ) * For adapter 503098 to mount properly, the 1/4-inch CCD camera must have a minimum of 13 mm clearance, measured from the front of the C-mount ring to the CCD surface. 503097 e Cam o ra n t inc lude d. 503099 162 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
