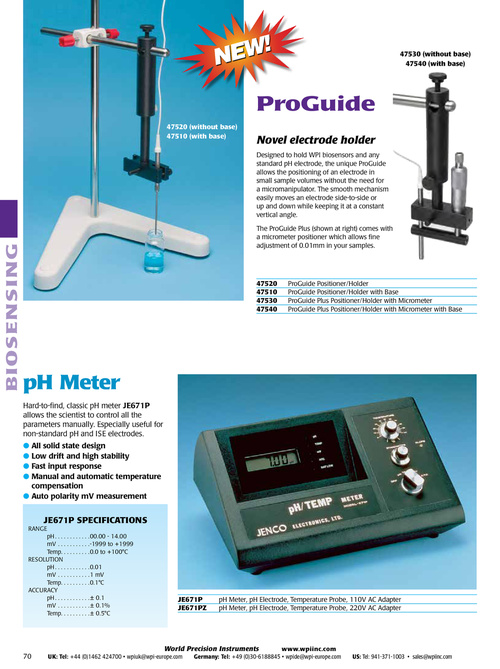

47530 (without base) 47540 (with base) proGuide 47520 (without base) 47510 (with base) Novel electrode holder Designed to hold WPI biosensors and any standard pH electrode, the unique ProGuide allows the positioning of an electrode in small sample volumes without the need for a micromanipulator. The smooth mechanism easily moves an electrode side-to-side or up and down while keeping it at a constant vertical angle. The ProGuide Plus (shown at right) comes with a micrometer positioner which allows fine adjustment of 0.01mm in your samples. BIOS EN S I NG 47520 47510 47530 47540 ProGuide Positioner/Holder ProGuide Positioner/Holder with Base ProGuide Plus Positioner/Holder with Micrometer ProGuide Plus Positioner/Holder with Micrometer with Base pH Meter Hard-to-find, classic pH meter JE671P allows the scientist to control all the parameters manually. Especially useful for non-standard pH and ISE electrodes. ● All solid state design ● Low drift and high stability ● Fast input response ● Manual and automatic temperature compensation ● Auto polarity mV measurement Je671p SpeciFicationS RANGE pH . . . . . . . . . . . .00.00 - 14.00 mV . . . . . . . . . . .-1999 to +1999 Temp. . . . . . . . . .0.0 to +100°C RESOLUTION pH . . . . . . . . . . . .0.01 mV . . . . . . . . . . .1 mV Temp. . . . . . . . . .0.1°C ACCURACY pH . . . . . . . . . . . .± 0.1 mV . . . . . . . . . . .± 0.1% Temp. . . . . . . . . .± 0.5°C Je671p Je671pZ pH Meter, pH Electrode, Temperature Probe, 110V AC Adapter pH Meter, pH Electrode, Temperature Probe, 220V AC Adapter 70 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
