www.bito.com

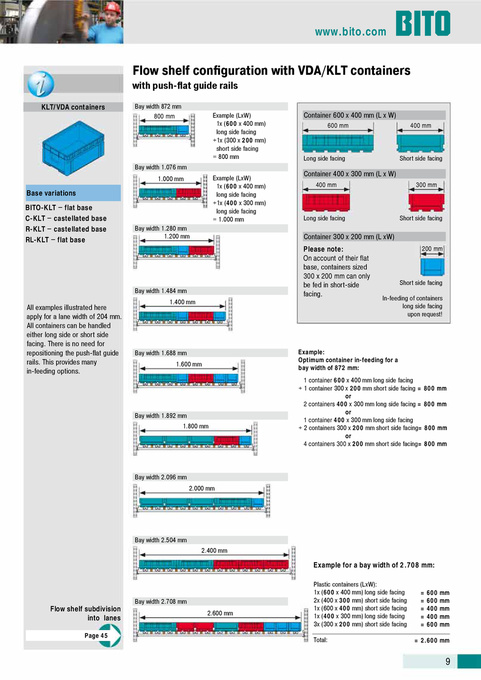

Flow shelf configuration with VDA/KLT containers
with push-flat guide rails
KLT/VDA containers
Bay width 872 mm 800 mm Example (LxW) 1x (600 x 400 mm) long side facing +1x (300 x 200 mm) short side facing = 800 mm Example (LxW) 1x (600 x 400 mm) long side facing +1x (400 x 300 mm) long side facing = 1.000 mm
Container 600 x 400 mm (L x W)
600 mm 400 mm
Long side facing
Short side facing
Bay width 1.076 mm 1.000 mm
Container 400 x 300 mm (L x W)
400 mm 300 mm
Base variations BITO-KLT − flat base C-KLT − castellated base R-KLT − castellated base RL-KLT − flat base
Long side facing
Short side facing
Bay width 1.280 mm 1.200 mm
Container 300 x 200 mm (L xW) Please note: On account of their flat base, containers sized 300 x 200 mm can only be fed in short-side facing.
200 mm
Short side facing In-feeding of containers long side facing upon request!
Bay width 1.484 mm
All examples illustrated here apply for a lane width of 204 mm. All containers can be handled either long side or short side facing. There is no need for repositioning the push-flat guide rails. This provides many in-feeding options.
1.400 mm
Bay width 1.688 mm 1.600 mm
Example: Optimum container in-feeding for a bay width of 872 mm: 1 container 600 x 400 mm long side facing + 1 container 300 x 200 mm short side facing = 800 mm or 2 containers 400 x 300 mm long side facing = 800 mm or 1 container 400 x 300 mm long side facing + 2 containers 300 x 200 mm short side facing= 800 mm or 4 containers 300 x 200 mm short side facing= 800 mm
Bay width 1.892 mm 1.800 mm
Bay width 2.096 mm 2.000 mm
Bay width 2.504 mm 2.400 mm
Example for a bay width of 2.708 mm:
Plastic containers (LxW): 1x (600 x 400 mm) long side facing 2x (400 x 300 mm) short side facing 1x (600 x 400 mm) short side facing 1x (400 x 300 mm) long side facing 3x (300 x 200 mm) short side facing Total: = 600 mm = 600 mm = 400 mm = 400 mm = 600 mm = 2.600 mm
Flow shelf subdivision into lanes
Page 45
Bay width 2.708 mm 2.600 mm
9
|
