Innovative Storage Solutions

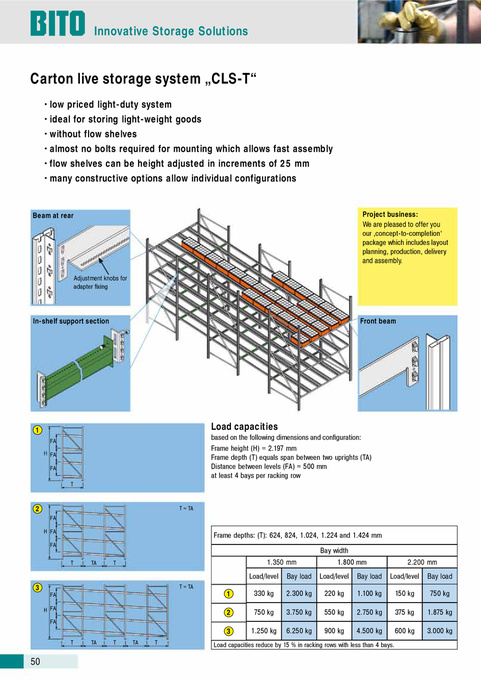

Carton live storage system „CLS-T“
• low priced light-duty system • ideal for storing light-weight goods • without flow shelves • almost no bolts required for mounting which allows fast assembly • flow shelves can be height adjusted in increments of 25 mm • many constructive options allow individual configurations
Project business: We are pleased to offer you our ‚concept-to-completion‘ package which includes layout planning, production, delivery and assembly.
Beam at rear
Adjustment knobs for adapter fixing
In-shelf support section
Front beam
1
FA FA FA T
Load capacities
based on the following dimensions and configuration: Frame height (H) = 2.197 mm Frame depth (T) equals span between two uprights (TA) Distance between levels (FA) = 500 mm at least 4 bays per racking row
2
FA H FA FA T TA T
T = TA
Frame depths: (T): 624, 824, 1.024, 1.224 and 1.424 mm Bay width 1.350 mm Load/level Bay load 2.300 kg 3.750 kg 6.250 kg
T = TA
1.800 mm Load/level 220 kg 550 kg 900 kg Bay load 1.100 kg 2.750 kg 4.500 kg
2.200 mm Load/level 150 kg 375 kg 600 kg Bay load 750 kg 1.875 kg 3.000 kg
3
FA H FA FA
1 2 3
330 kg 750 kg 1.250 kg
T
TA
T
TA
T
Load capacities reduce by 15 % in racking rows with less than 4 bays.
50
|
