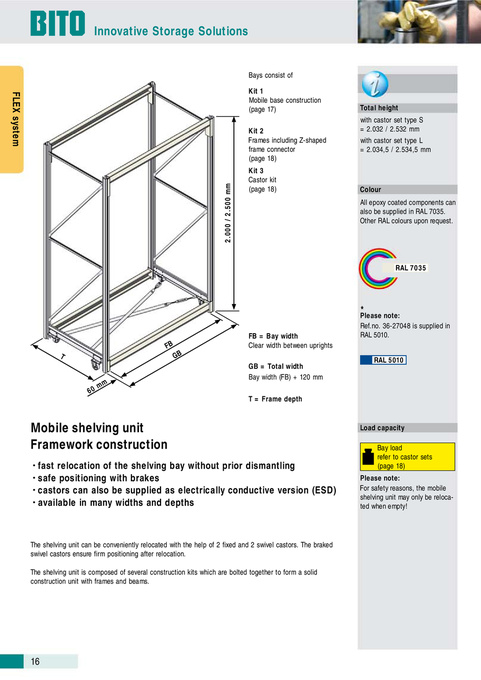

Innovative Storage Solutions
Bays consist of Kit 1 Mobile base construction (page 17) Kit 2 Frames including Z-shaped frame connector (page 18) Kit 3 Castor kit (page 18)
2.000 / 2.500 mm
FLEX system
T mm FB GB 60
Total height with castor set type S = 2.032 / 2.532 mm with castor set type L = 2.034,5 / 2.534,5 mm
Colour All epoxy coated components can also be supplied in RAL 7035. Other RAL colours upon request.
RAL 7035
* Please note:
FB = Bay width Clear width between uprights GB = Total width Bay width (FB) + 120 mm T = Frame depth Ref.no. 36-27048 is supplied in RAL 5010. RAL 5010
Mobile shelving unit Framework construction
• fast relocation of the shelving bay without prior dismantling • safe positioning with brakes • castors can also be supplied as electrically conductive version (ESD) • available in many widths and depths
Load capacity Bay load refer to castor sets (page 18) Please note: For safety reasons, the mobile shelving unit may only be relocated when empty!
The shelving unit can be conveniently relocated with the help of 2 fixed and 2 swivel castors. The braked swivel castors ensure firm positioning after relocation. The shelving unit is composed of several construction kits which are bolted together to form a solid construction unit with frames and beams.
