Innovative Storage Solutions

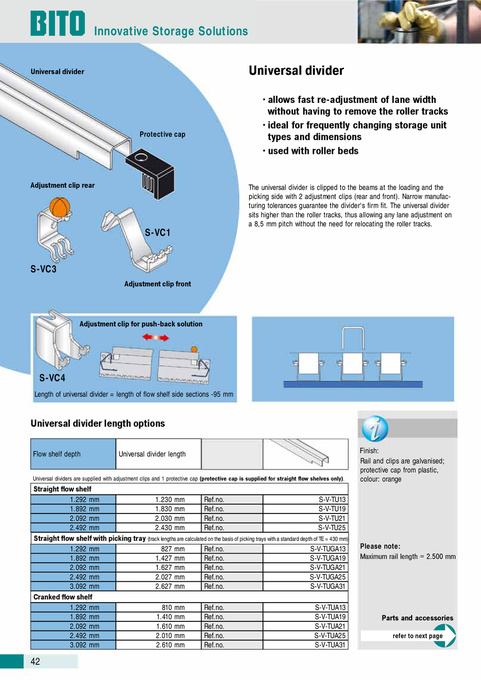

Universal divider
Universal divider
• allows fast re-adjustment of lane width without having to remove the roller tracks • ideal for frequently changing storage unit types and dimensions • used with roller beds
The universal divider is clipped to the beams at the loading and the picking side with 2 adjustment clips (rear and front). Narrow manufacturing tolerances guarantee the divider‘s firm fit. The universal divider sits higher than the roller tracks, thus allowing any lane adjustment on a 8,5 mm pitch without the need for relocating the roller tracks.
Protective cap
Adjustment clip rear
S-VC1 S-VC3
Adjustment clip front
Adjustment clip for push-back solution
S-VC4
Length of universal divider = length of flow shelf side sections -95 mm
Universal divider length options
Flow shelf depth Universal divider length Finish: Rail and clips are galvanised; protective cap from plastic, colour: orange
Universal dividers are supplied with adjustment clips and 1 protective cap (protective cap is supplied for straight flow shelves only).
Straight flow shelf 1.292 mm 1.230 mm Ref.no. S-V-TU13 S-V-TU19 1.892 mm 1.830 mm Ref.no. 2.092 mm 2.030 mm Ref.no. S-V-TU21 2.492 mm 2.430 mm Ref.no. S-V-TU25 Straight flow shelf with picking tray (track lengths are calculated on the basis of picking trays with a standard depth of TE = 430 mm) 1.292 mm 827 mm Ref.no. S-V-TUGA13 1.892 mm 1.427 mm Ref.no. S-V-TUGA19 2.092 mm 1.627 mm Ref.no. S-V-TUGA21 2.492 mm 2.027 mm Ref.no. S-V-TUGA25 3.092 mm 2.627 mm Ref.no. S-V-TUGA31 Cranked flow shelf 1.292 mm 810 mm Ref.no. S-V-TUA13 1.892 mm 1.410 mm Ref.no. S-V-TUA19 2.092 mm 1.610 mm Ref.no. S-V-TUA21 2.492 mm 2.010 mm Ref.no. S-V-TUA25 3.092 mm 2.610 mm Ref.no. S-V-TUA31
Please note: Maximum rail length = 2.500 mm
Parts and accessories
refer to next page
42
|
