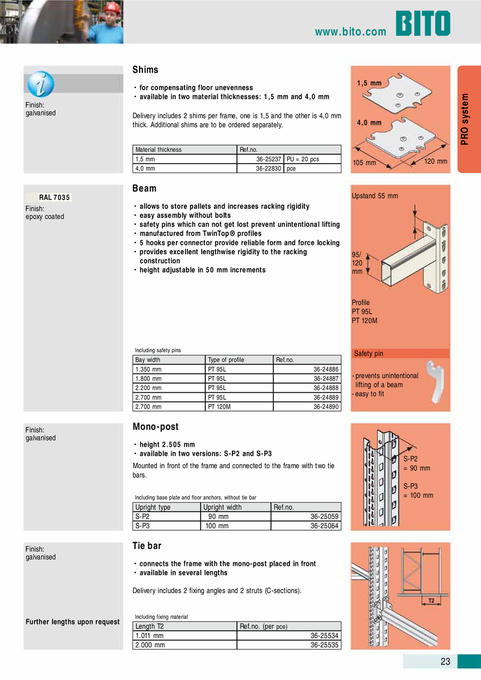

www.bito.com
Shims
Finish: galvanised
Delivery includes 2 shims per frame, one is 1,5 and the other is 4,0 mm thick. Additional shims are to be ordered separately.
Material thickness 1,5 mm 4,0 mm Ref.no. 36-25237 PU = 20 pcs 36-22830 pce
4,0 mm
105 mm
120 mm
RAL 7035 Finish: epoxy coated
Beam
• allows to store pallets and increases racking rigidity • easy assembly without bolts • safety pins which can not get lost prevent unintentional lifting • manufactured from TwinTop® profiles • 5 hooks per connector provide reliable form and force locking • provides excellent lengthwise rigidity to the racking construction • height adjustable in 50 mm increments
Upstand 55 mm
95/ 120 mm
Profile PT 95L PT 120M
Including safety pins
Bay width 1.350 mm 1.800 mm 2.200 mm 2.700 mm 2.700 mm
Type of profile PT 95L PT 95L PT 95L PT 95L PT 120M
Ref.no. 36-24886 36-24887 36-24888 36-24889 36-24890
Safety pin - prevents unintentional lifting of a beam - easy to fit
Finish: galvanised
Mono-post
• height 2.505 mm • available in two versions: S-P2 and S-P3 Mounted in front of the frame and connected to the frame with two tie bars.
Including base plate and floor anchors, without tie bar
S-P2 = 90 mm S-P3 = 100 mm
Upright type S-P2 S-P3 Finish: galvanised
Upright width 90 mm 100 mm
Ref.no. 36-25059 36-25064
Tie bar
• connects the frame with the mono-post placed in front • available in several lengths Delivery includes 2 fixing angles and 2 struts (C-sections).
Including fixing material
Further lengths upon request
Length T2 1.011 mm 2.000 mm
Ref.no. (per pce) 36-25534 36-25535
23
PRO system
• for compensating floor unevenness • available in two material thicknesses: 1,5 mm and 4,0 mm
1,5 mm
|
