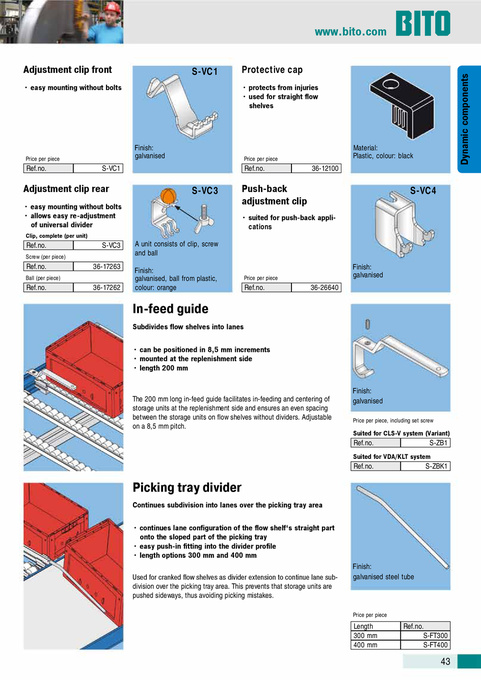

www.bito.com
Adjustment clip front
• easy mounting without bolts
• protects from injuries • used for straight flow shelves
Price per piece
Finish: galvanised S-VC1
Price per piece
Material: Plastic, colour: black 36-12100
Ref.no.
Ref.no.
Adjustment clip rear
• easy mounting without bolts • allows easy re-adjustment of universal divider
Clip, complete (per unit)
S-VC3
Push-back adjustment clip
• suited for push-back applications
S-VC4
Ref.no.
Screw (per piece)
S-VC3 36-17263 36-17262
A unit consists of clip, screw and ball Finish: galvanised, ball from plastic, colour: orange
Price per piece
Ref.no.
Ball (per piece)
Finish: galvanised 36-26640
Ref.no.
Ref.no.
In-feed guide
Subdivides flow shelves into lanes • can be positioned in 8,5 mm increments • mounted at the replenishment side • length 200 mm Finish: galvanised
Price per piece, including set screw
The 200 mm long in-feed guide facilitates in-feeding and centering of storage units at the replenishment side and ensures an even spacing between the storage units on flow shelves without dividers. Adjustable on a 8,5 mm pitch.
Suited for CLS-V system (Variant)
Ref.no. Ref.no.
S-ZB1 S-ZBK1
Suited for VDA/KLT system
Picking tray divider
Continues subdivision into lanes over the picking tray area • continues lane configuration of the flow shelf‘s straight part onto the sloped part of the picking tray • easy push-in fitting into the divider profile • length options 300 mm and 400 mm Used for cranked flow shelves as divider extension to continue lane subdivision over the picking tray area. This prevents that storage units are pushed sideways, thus avoiding picking mistakes. Finish: galvanised steel tube
Price per piece
Length 300 mm 400 mm
Ref.no. S-FT300 S-FT400
43
Dynamic components
S-VC1
Protective cap
|
