Innovative Storage Solutions
Dynamic components
Flow shelf „cranked“ Flow shelf - „straight with inclined picking tray“ Flow shelf „straight“
Please refer to the following pages for a more detailed description of the individual components: Roller tracks Dividers Push-flat guide rails Label holders Adapters for roller track and standard divider fitting Support section types „RV“ for flow shelves 36-38 40-42 44 46 39 34
Colour All epoxy coated components are supplied in RAL 5010. Other colours upon request.
RAL 5010

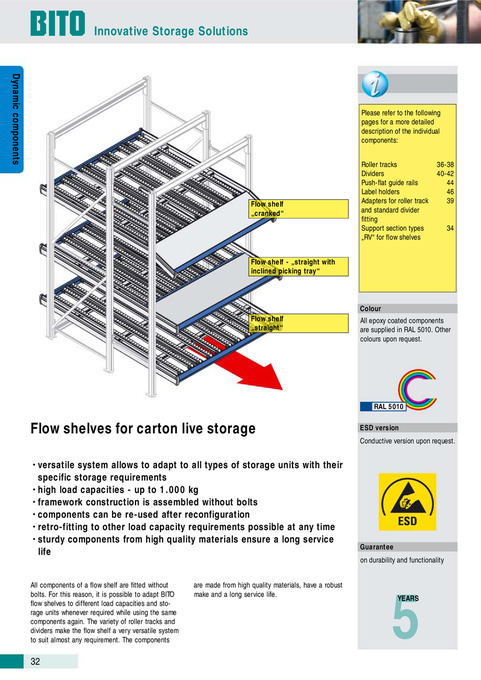

Flow shelves for carton live storage
• versatile system allows to adapt to all types of storage units with their specific storage requirements • high load capacities - up to 1.000 kg • framework construction is assembled without bolts • components can be re-used after reconfiguration • retro-fitting to other load capacity requirements possible at any time • sturdy components from high quality materials ensure a long service life
All components of a flow shelf are fitted without bolts. For this reason, it is possible to adapt BITO flow shelves to different load capacities and storage units whenever required while using the same components again. The variety of roller tracks and dividers make the flow shelf a very versatile system to suit almost any requirement. The components are made from high quality materials, have a robust make and a long service life.
ESD version Conductive version upon request.
Guarantee on durability and functionality
32
5
YEARS
|
