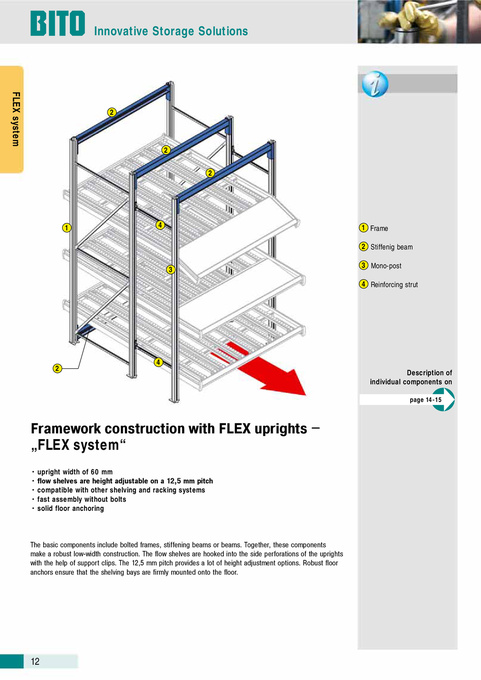

1 Frame 2 Stiffenig beam 3 3 Mono-post 4 Reinforcing strut
4 Description of individual components on
page 14-15
Framework construction with FLEX uprights − „FLEX system“
• upright width of 60 mm • flow shelves are height adjustable on a 12,5 mm pitch • compatible with other shelving and racking systems • fast assembly without bolts • solid floor anchoring
The basic components include bolted frames, stiffening beams or beams. Together, these components make a robust low-width construction. The flow shelves are hooked into the side perforations of the uprights with the help of support clips. The 12,5 mm pitch provides a lot of height adjustment options. Robust floor anchors ensure that the shelving bays are firmly mounted onto the floor.
