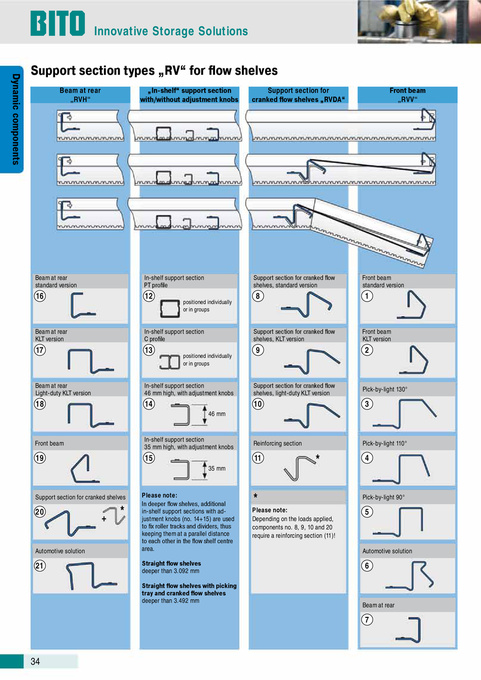

Support section types „RV“ for flow shelves
Beam at rear „RVH“ „In-shelf“ support section with/without adjustment knobs Support section for cranked flow shelves „RVDA“ Front beam „RVV“
Dynamic components
Beam at rear standard version
In-shelf support section PT profile
Support section for cranked flow shelves, standard version
Front beam standard version
16
12
positioned individually or in groups
8
1
Beam at rear KLT version
In-shelf support section C profile
Support section for cranked flow shelves, KLT version
Front beam KLT version
17
13
positioned individually or in groups
9
2
Beam at rear Light-duty KLT version
In-shelf support section 46 mm high, with adjustment knobs
Support section for cranked flow shelves, light-duty KLT version
Pick-by-light 130°
18
14
46 mm
10
3
Front beam
In-shelf support section 35 mm high, with adjustment knobs
Reinforcing section
Pick-by-light 110°
19
15
35 mm
11
*
4
Support section for cranked shelves
20
+
*
Automotive solution
Please note: In deeper flow shelves, additional in-shelf support sections with adjustment knobs (no. 14+15) are used to fix roller tracks and dividers, thus keeping them at a parallel distance to each other in the flow shelf centre area. Straight flow shelves deeper than 3.092 mm Straight flow shelves with picking tray and cranked flow shelves deeper than 3.492 mm
Please note: Depending on the loads applied, components no. 8, 9, 10 and 20 require a reinforcing section (11)!
*
Pick-by-light 90°
5
Automotive solution
21
6
Beam at rear
7
