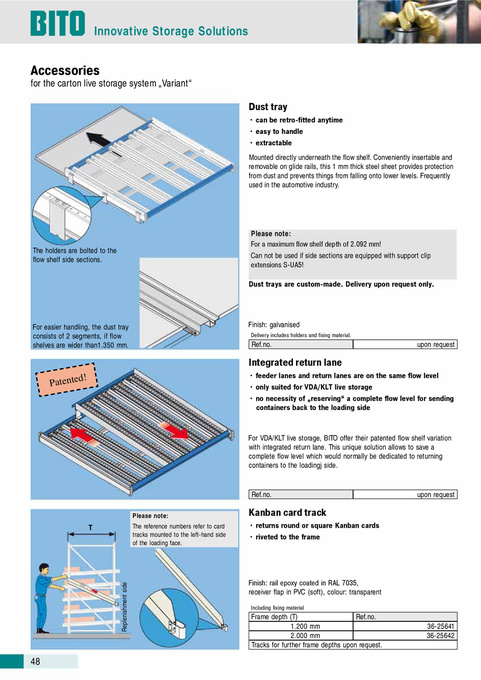

Innovative Storage Solutions Accessories for the carton live storage system „Variant“ Dust tray • can be retro-fitted anytime • easy to handle • extractable Mounted directly underneath the flow shelf. Conveniently insertable and removable on glide rails, this 1 mm thick steel sheet provides protection from dust and prevents things from falling onto lower levels. Frequently used in the automotive industry. The holders are bolted to the flow shelf side sections. Please note: For a maximum flow shelf depth of 2.092 mm! Can not be used if side sections are equipped with support clip extensions S-UA5! Dust trays are custom-made. Delivery upon request only. For easier handling, the dust tray consists of 2 segments, if flow shelves are wider than1.350 mm. Finish: galvanised Delivery includes holders and fixing material. Ref.no. upon request Integrated return lane Patente d! • feeder lanes and return lanes are on the same flow level • only suited for VDA/KLT live storage • no necessity of „reserving“ a complete flow level for sending containers back to the loading side For VDA/KLT live storage, BITO offer their patented flow shelf variation with integrated return lane. This unique solution allows to save a complete flow level which would normally be dedicated to returning containers to the loadingj side. Ref.no. Please note: upon request Kanban card track • returns round or square Kanban cards • riveted to the frame T The reference numbers refer to card tracks mounted to the left-hand side of the loading face. Replenishment side Finish: rail epoxy coated in RAL 7035, receiver flap in PVC (soft), colour: transparent Including fixing material Frame depth (T) Ref.no. 1.200 mm 2.000 mm Tracks for further frame depths upon request. 36-25641 36-25642 48
