www.bito.com

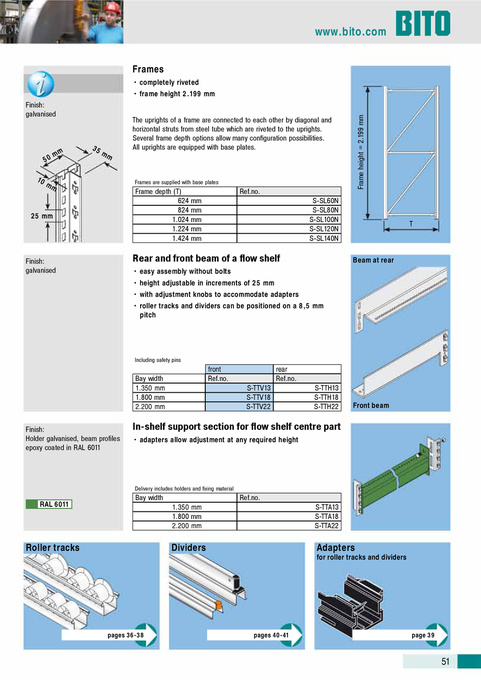

Frames
• completely riveted • frame height 2.199 mm The uprights of a frame are connected to each other by diagonal and horizontal struts from steel tube which are riveted to the uprights. Several frame depth options allow many configuration possibilities. All uprights are equipped with base plates. Frame height = 2.199 mm Finish: galvanised
m 50 10 m m
m
35
mm
Frames are supplied with base plates
25 mm
Frame depth (T) 624 824 1.024 1.224 1.424
Ref.no. mm mm mm mm mm S-SL60N S-SL80N S-SL100N S-SL120N S-SL140N
T
Finish: galvanised
Rear and front beam of a flow shelf
• easy assembly without bolts • height adjustable in increments of 25 mm • with adjustment knobs to accommodate adapters • roller tracks and dividers can be positioned on a 8,5 mm pitch
Beam at rear
Including safety pins
Bay width 1.350 mm 1.800 mm 2.200 mm Finish: Holder galvanised, beam profiles epoxy coated in RAL 6011
front Ref.no. S-TTV13 S-TTV18 S-TTV22
rear Ref.no. S-TTH13 S-TTH18 S-TTH22 Front beam
In-shelf support section for flow shelf centre part
• adapters allow adjustment at any required height
Delivery includes holders and fixing material
RAL 6011
Bay width 1.350 mm 1.800 mm 2.200 mm
Ref.no. S-TTA13 S-TTA18 S-TTA22
Roller tracks
Dividers
for roller tracks and dividers
Adapters
pages 36-38
pages 40-41
page 39
51
|
