Innovative Storage Solutions
A
FLEX system
3
B
2 1
4 1
C A B
1
1 Support clip 2 Support seat 3 Safety hook 4 Support clip extension 5 Support bolt
PRO system 28
C D
D
5

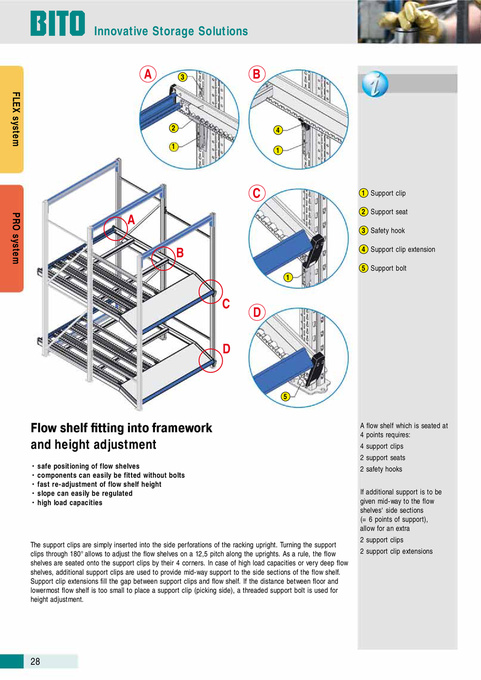

Flow shelf fitting into framework and height adjustment
• safe positioning of flow shelves • components can easily be fitted without bolts • fast re-adjustment of flow shelf height • slope can easily be regulated • high load capacities
A flow shelf which is seated at 4 points requires: 4 support clips 2 support seats 2 safety hooks If additional support is to be given mid-way to the flow shelves‘ side sections (= 6 points of support), allow for an extra 2 support clips 2 support clip extensions
The support clips are simply inserted into the side perforations of the racking upright. Turning the support clips through 180° allows to adjust the flow shelves on a 12,5 pitch along the uprights. As a rule, the flow shelves are seated onto the support clips by their 4 corners. In case of high load capacities or very deep flow shelves, additional support clips are used to provide mid-way support to the side sections of the flow shelf. Support clip extensions fill the gap between support clips and flow shelf. If the distance between floor and lowermost flow shelf is too small to place a support clip (picking side), a threaded support bolt is used for height adjustment.
|
