www.bito.com

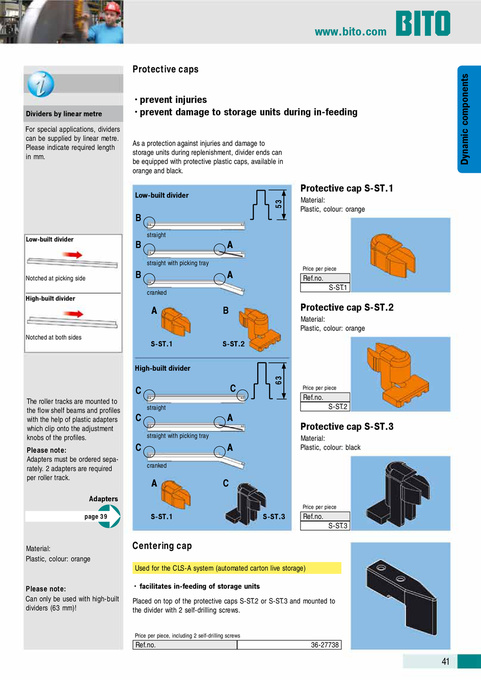

Protective caps • prevent injuries • prevent damage to storage units during in-feeding
As a protection against injuries and damage to storage units during replenishment, divider ends can be equipped with protective plastic caps, available in orange and black. Low-built divider
Dividers by linear metre For special applications, dividers can be supplied by linear metre. Please indicate required length in mm.
B
Low-built divider
Material: Plastic, colour: orange
Protective cap S-ST.1
B B
straight
A A
Price per piece
straight with picking tray Notched at picking side High-built divider
53
Ref.no. S-ST.1
cranked
A
Notched at both sides
B
S-ST.2
Protective cap S-ST.2
Material: Plastic, colour: orange
S-ST.1 High-built divider
The roller tracks are mounted to the flow shelf beams and profiles with the help of plastic adapters which clip onto the adjustment knobs of the profiles. Please note: Adapters must be ordered separately. 2 adapters are required per roller track. Adapters
page 39
C C C
cranked straight
C A A A
S-ST.1
63
Price per piece
Ref.no. S-ST.2
straight with picking tray
Protective cap S-ST.3
Material: Plastic, colour: black
C
Price per piece
S-ST.3
Ref.no. S-ST.3
Material: Plastic, colour: orange
Centering cap
Used for the CLS-A system (automated carton live storage) • facilitates in-feeding of storage units Placed on top of the protective caps S-ST.2 or S-ST.3 and mounted to the divider with 2 self-drilling screws.
Price per piece, including 2 self-drilling screws
Please note: Can only be used with high-built dividers (63 mm)!
Ref.no.
36-27738
41
Dynamic components
|
