Innovative Storage Solutions

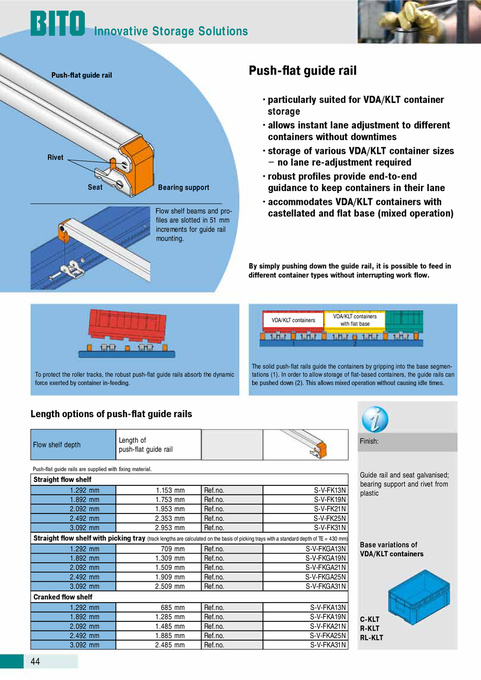

Push-flat guide rail
Push-flat guide rail
• particularly suited for VDA/KLT container storage • allows instant lane adjustment to different containers without downtimes • storage of various VDA/KLT container sizes − no lane re-adjustment required • robust profiles provide end-to-end guidance to keep containers in their lane • accommodates VDA/KLT containers with castellated and flat base (mixed operation)
Rivet
Seat
Bearing support Flow shelf beams and profiles are slotted in 51 mm increments for guide rail mounting.
By simply pushing down the guide rail, it is possible to feed in different container types without interrupting work flow.
VDA/KLT containers
VDA/KLT containers with flat base
To protect the roller tracks, the robust push-flat guide rails absorb the dynamic force exerted by container in-feeding.
The solid push-flat rails guide the containers by gripping into the base segmentations (1). In order to allow storage of flat-based containers, the guide rails can be pushed down (2). This allows mixed operation without causing idle times.
Length options of push-flat guide rails
Flow shelf depth Length of push-flat guide rail Finish:
Push-flat guide rails are supplied with fixing material.
Straight flow shelf 1.292 mm 1.153 mm Ref.no. S-V-FK13N 1.892 mm 1.753 mm Ref.no. S-V-FK19N 2.092 mm 1.953 mm Ref.no. S-V-FK21N 2.492 mm 2.353 mm Ref.no. S-V-FK25N 3.092 mm 2.953 mm Ref.no. S-V-FK31N Straight flow shelf with picking tray (track lengths are calculated on the basis of picking trays with a standard depth of TE = 430 mm) 1.292 mm 709 mm Ref.no. S-V-FKGA13N 1.892 mm 1.309 mm Ref.no. S-V-FKGA19N 2.092 mm 1.509 mm Ref.no. S-V-FKGA21N 2.492 mm 1.909 mm Ref.no. S-V-FKGA25N 3.092 mm 2.509 mm Ref.no. S-V-FKGA31N Cranked flow shelf 1.292 mm 685 mm Ref.no. S-V-FKA13N 1.892 mm 1.285 mm Ref.no. S-V-FKA19N 2.092 mm 1.485 mm Ref.no. S-V-FKA21N 2.492 mm 1.885 mm Ref.no. S-V-FKA25N 3.092 mm 2.485 mm Ref.no. S-V-FKA31N
Guide rail and seat galvanised; bearing support and rivet from plastic
Base variations of VDA/KLT containers
C-KLT R-KLT RL-KLT
44
|
