Innovative Storage Solutions

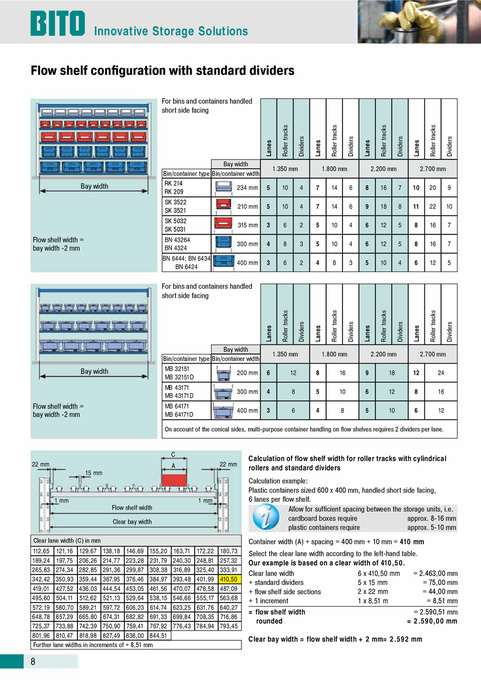

Flow shelf configuration with standard dividers
For bins and containers handled short side facing
Roller tracks Roller tracks Roller tracks Roller tracks 20 22 16 16 12 Roller tracks 24 16 12
Dividers
Dividers
Dividers
Bay width Bin/container type Bin/container width
1.350 mm 5 5 3 4 3 10 10 6 8 6 4 4 2 3 2 7 7 5 5 4
1.800 mm 14 14 10 10 8 6 6 4 4 3 8 9 6 6 5
2.200 mm 16 18 12 12 10 7 8 5 5 4 10 11 8 8 6
2.700 mm 9 10 7 7 5
Bay width
RK 214 RK 209 SK 3522 SK 3521 SK 5032 SK 5031
234 mm 210 mm 315 mm 300 mm 400 mm
Flow shelf width = bay width -2 mm
BN 43264 BN 4324 BN 6444; BN 6434 BN 6424
For bins and containers handled short side facing
Roller tracks Roller tracks Roller tracks
Dividers
Dividers
Dividers
Bay width Bin/container type Bin/container width
1.350 mm 6 4 3 12 8 6 8 5 4
1.800 mm 16 10 8 9 6 5
2.200 mm 18 12 10 12 8 6
2.700 mm
Bay width
MB 32151 MB 32151D MB 43171 MB 43171D
200 mm 300 mm 400 mm
Flow shelf width = bay width -2 mm
MB 64171 MB 64171D
On account of the conical sides, multi-purpose container handling on flow shelves requires 2 dividers per lane.
C 22 mm 15 mm A 22 mm
Calculation of flow shelf width for roller tracks with cylindrical rollers and standard dividers Calculation example: Plastic containers sized 600 x 400 mm, handled short side facing, 6 lanes per flow shelf. Allow for sufficient spacing between the storage units, i.e. cardboard boxes require approx. 8-16 mm plastic containers require approx. 5-10 mm
1 mm
Flow shelf width Clear bay width
1 mm
Clear lane width (C) in mm 112,65 121,16 129,67 138,18 146,69 155,20 189,24 197,75 206,26 214,77 223,28 231,79 265,83 274,34 282,85 291,36 299,87 308,38 342,42 350,93 359,44 367,95 376,46 384,97 419,01 427,52 436,03 444,54 453,05 461,56 495,60 504,11 512,62 521,13 529,64 538,15 572,19 580,70 589,21 597,72 606,23 614,74 648,78 657,29 665,80 674,31 682,82 691,33 725,37 733,88 742,39 750,90 759,41 767,92 801,96 810,47 818,98 827,49 836,00 844,51 Further lane widths in increments of + 8,51 mm 163,71 240,30 316,89 393,48 470,07 546,66 623,25 699,84 776,43 172,22 248,81 325,40 401,99 478,58 555,17 631,76 708,35 784,94 180,73 257,32 333,91 410,50 487,09 563,68 640,27 716,86 793,45
Container width (A) + spacing = 400 mm + 10 mm = 410 mm Select the clear lane width according to the left-hand table. Our example is based on a clear width of 410,50. = 2.463,00 mm 6 x 410,50 mm Clear lane width = 75,00 mm 5 x 15 mm + standard dividers = 44,00 mm 2 x 22 mm + flow shelf side sections = 8,51 mm 1 x 8,51 m + 1 increment = flow shelf width rounded = 2.590,51 mm = 2.590,00 mm
Clear bay width = flow shelf width + 2 mm= 2.592 mm
8
Dividers
Lanes
Lanes
Lanes
Lanes
Dividers
Lanes
Lanes
Lanes
Lanes
|
