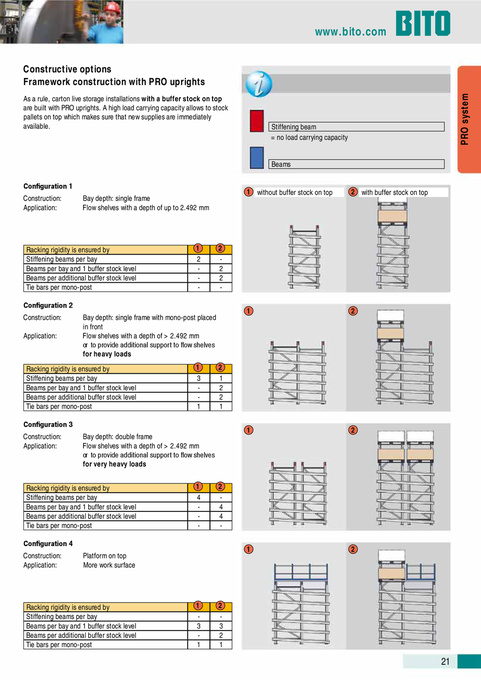

www.bito.com Constructive options Framework construction with PRO uprights As a rule, carton live storage installations with a buffer stock on top are built with PRO uprights. A high load carrying capacity allows to stock pallets on top which makes sure that new supplies are immediately available. Stiffening beam = no load carrying capacity Beams Configuration 1 Construction: Application: Bay depth: single frame Flow shelves with a depth of up to 2.492 mm 1 without buffer stock on top 2 with buffer stock on top Racking rigidity is ensured by Stiffening beams per bay Beams per bay and 1 buffer stock level Beams per additional buffer stock level Tie bars per mono-post Configuration 2 Construction: Application: 1 2 - 2 2 2 1 2 Bay depth: single frame with mono-post placed in front Flow shelves with a depth of > 2.492 mm or to provide additional support to flow shelves for heavy loads 1 3 1 2 1 2 2 1 Racking rigidity is ensured by Stiffening beams per bay Beams per bay and 1 buffer stock level Beams per additional buffer stock level Tie bars per mono-post Configuration 3 Construction: Application: Bay depth: double frame Flow shelves with a depth of > 2.492 mm or to provide additional support to flow shelves for very heavy loads 1 4 2 4 4 - 1 2 Racking rigidity is ensured by Stiffening beams per bay Beams per bay and 1 buffer stock level Beams per additional buffer stock level Tie bars per mono-post Configuration 4 Construction: Application: Platform on top More work surface 1 2 Racking rigidity is ensured by Stiffening beams per bay Beams per bay and 1 buffer stock level Beams per additional buffer stock level Tie bars per mono-post 1 3 1 2 3 2 1 21 PRO system
