Innovative Storage Solutions

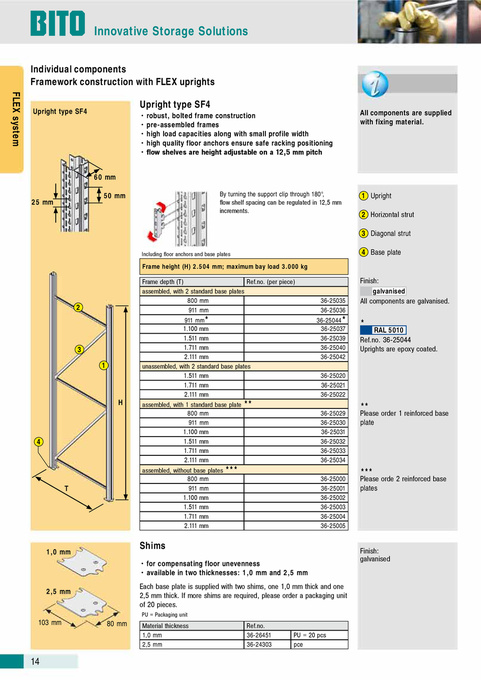

Individual components Framework construction with FLEX uprights FLEX system
Upright type SF4
Upright type SF4
• robust, bolted frame construction • pre-assembled frames • high load capacities along with small profile width • high quality floor anchors ensure safe racking positioning • flow shelves are height adjustable on a 12,5 mm pitch
All components are supplied with fixing material.
60 mm 25 mm 50 mm
By turning the support clip through 180°, flow shelf spacing can be regulated in 12,5 mm increments.
1 Upright 2 Horizontal strut 3 Diagonal strut
Including floor anchors and base plates
4 Base plate Finish:
36-25035 36-25036
Frame height (H) 2.504 mm; maximum bay load 3.000 kg Frame depth (T) Ref.no. (per piece) assembled, with 2 standard base plates 800 mm 911 mm 911 mm* 1.100 mm 1.511 mm 1.711 mm 2.111 mm unassembled, with 2 standard base plates 1.511 mm 1.711 mm 2.111 mm assembled, with 1 standard base plate 800 mm 911 mm 1.100 mm 1.511 mm 1.711 mm 2.111 mm assembled, without base plates 800 mm 911 mm 1.100 mm 1.511 mm 1.711 mm 2.111 mm
2
All components are galvanised.
galvanised
3 1
36-25044* 36-25037 36-25039 36-25040 36-25042 36-25020 36-25021 36-25022 36-25029 36-25030 36-25031 36-25032 36-25033 36-25034 36-25000 36-25001 36-25002 36-25003 36-25004 36-25005
*
RAL 5010 Ref.no. 36-25044 Uprights are epoxy coated.
H
**
**
Please order 1 reinforced base plate
4
***
***
T
Please orde 2 reinforced base plates
1,0 mm
Shims
• for compensating floor unevenness • available in two thicknesses: 1,0 mm and 2,5 mm
Finish: galvanised
2,5 mm
Each base plate is supplied with two shims, one 1,0 mm thick and one 2,5 mm thick. If more shims are required, please order a packaging unit of 20 pieces.
PU = Packaging unit
103 mm
80 mm
Material thickness 1,0 mm 2,5 mm
Ref.no. 36-26451 36-24303
PU = 20 pcs pce
