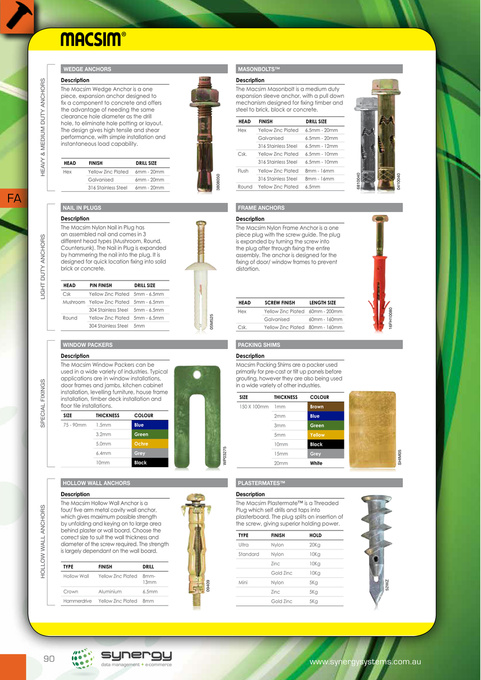

WEDGE ANCHORS HEAVY & MEDIUM DUTY ANCHORS MASONBOLTS™ Description The Macsim Masonbolt is a medium duty expansion sleeve anchor, with a pull down mechanism designed for fixing timber and steel to brick, block or concrete. HEAD Hex FINISH Yellow Zinc Plated Galvanised 316 Stainless Steel Csk. Yellow Zinc Plated 316 Stainless Steel 3808050 Description The Macsim Wedge Anchor is a one piece, expansion anchor designed to fix a component to concrete and offers the advantage of needing the same clearance hole diameter as the drill hole, to eliminate hole potting or layout. The design gives high tensile and shear performance, with simple installation and instantaneous load capability. HEAD Hex FINISH Yellow Zinc Plated Galvanised 316 Stainless Steel DRILL SIZE 6mm - 20mm 6mm - 20mm 6mm - 20mm DRILL SIZE 6.5mm - 20mm 6.5mm - 20mm 6.5mm - 12mm 6.5mm - 10mm 6.5mm - 10mm 6810040 316 Stainless Steel Round Yellow Zinc Plated 8mm - 16mm 6.5mm FA LIGHT DUTY ANCHORS NAIL IN PLUGS Description FRAME ANCHORS Description The Macsim Nylon Nail in Plug has an assembled nail and comes in 3 different head types (Mushroom, Round, Countersunk). The Nail in Plug is expanded by hammering the nail into the plug. It is designed for quick location fixing into solid brick or concrete. HEAD Csk PIN FINISH DRILL SIZE The Macsim Nylon Frame Anchor is a one piece plug with the screw guide. The plug is expanded by turning the screw into the plug after through fixing the entire assembly. The anchor is designed for the fixing of door/ window frames to prevent distortion. Yellow Zinc Plated 5mm - 6.5mm HEAD 05M525 Mushroom Yellow Zinc Plated 5mm - 6.5mm 304 Stainless Steel Round 304 Stainless Steel 5mm - 6.5mm 5mm Yellow Zinc Plated 5mm - 6.5mm SCREW FINISH Galvanised LENGTH SIZE 60mm - 160mm 16FH10080 52WZ SHIM05 Hex Csk. Yellow Zinc Plated 60mm - 200mm Yellow Zinc Plated 80mm - 160mm WINDOW PACKERS Description The Macsim Window Packers can be used in a wide variety of industries. Typical applications are in window installations, door frames and jambs, kitchen cabinet installation, levelling furniture, house frame installation, timber deck installation and floor tile installations. SIZE 75 - 90mm THICKNESS 1.5mm 3.2mm 5.0mm 6.4mm 10mm COLOUR Blue Green Grey Black WP03275 PACKING SHIMS Description Macsim Packing Shims are a packer used primarily for pre-cast or tilt up panels before grouting, however they are also being used in a wide variety of other industries. SIZE 150 X 100mm THICKNESS 1mm 2mm 3mm 5mm 10mm 15mm 20mm COLOUR Brown Blue Green Yellow Black Grey White SPECIAL FIXINGS Ochre HOLLOW WALL ANCHORS Description HOLLOW WALL ANCHORS PLASTERMATES™ Description The Macsim Hollow Wall Anchor is a four/ five arm metal cavity wall anchor, which gives maximum possible strength by unfolding and keying on to large area behind plaster or wall board. Choose the correct size to suit the wall thickness and diameter of the screw required. The strength is largely dependant on the wall board. TYPE Hollow Wall Crown Hammerdrive FINISH Yellow Zinc Plated Aluminium Yellow Zinc Plated DRILL 09409 The Macsim Plastermate™ is a Threaded Plug which self drills and taps into plasterboard. The plug splits on insertion of the screw, giving superior holding power. TYPE Ultra Standard FINISH Nylon Nylon Zinc Gold Zinc Mini Nylon Zinc Gold Zinc HOLD 20Kg 10Kg 10Kg 10Kg 5Kg 5Kg 5Kg 8mm13mm 6.5mm 8mm 90 www.synergysystems.com.au 0410040 Flush Yellow Zinc Plated 8mm - 16mm
